(31.114.AT[05]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, DRIVEN GEAR - NA

Запчасти Case IH FARMALL 115C (31.114.AT[05]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, DRIVEN GEAR - NA (31) - IMPLEMENT POWER TAKE OFF

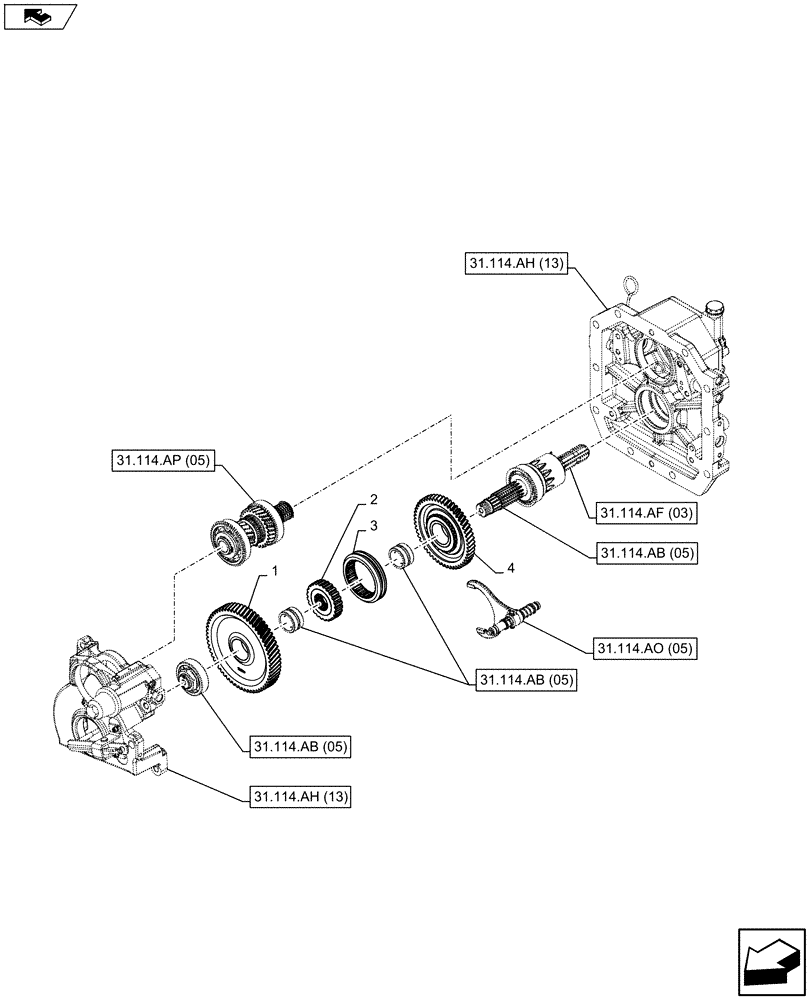

Схема запчастей Case IH FARMALL 115C - (31.114.AT[05]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, DRIVEN GEAR - NA (31) - IMPLEMENT POWER TAKE OFF
31.114.ab (05)
31.114.ab (05)
2
3
31.114.af (03)
31.114.ao (05)
home
31.114.ah (13)
4
31.114.ab (05)
31.114.ah (13)
1
31.114.ap (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84483099

GEAR,24T/ 61T

Driven, 540 RPM

1шт.

2

5171264

GEAR,14T Internal / 24T External

1шт.

3

5145798

SYNCHRONIZER,24T

1шт.

4

84483100

GEAR,52T/ 90T

Driven, 1000 RPM

1шт.

Выбрано товаров: 0
