(55.512.CL) - VAR - 334127 - ELECTRONIC JOYSTICK

Запчасти Case IH FARMALL 115U (55.512.CL) - VAR - 334127 - ELECTRONIC JOYSTICK (55) - ELECTRICAL SYSTEMS

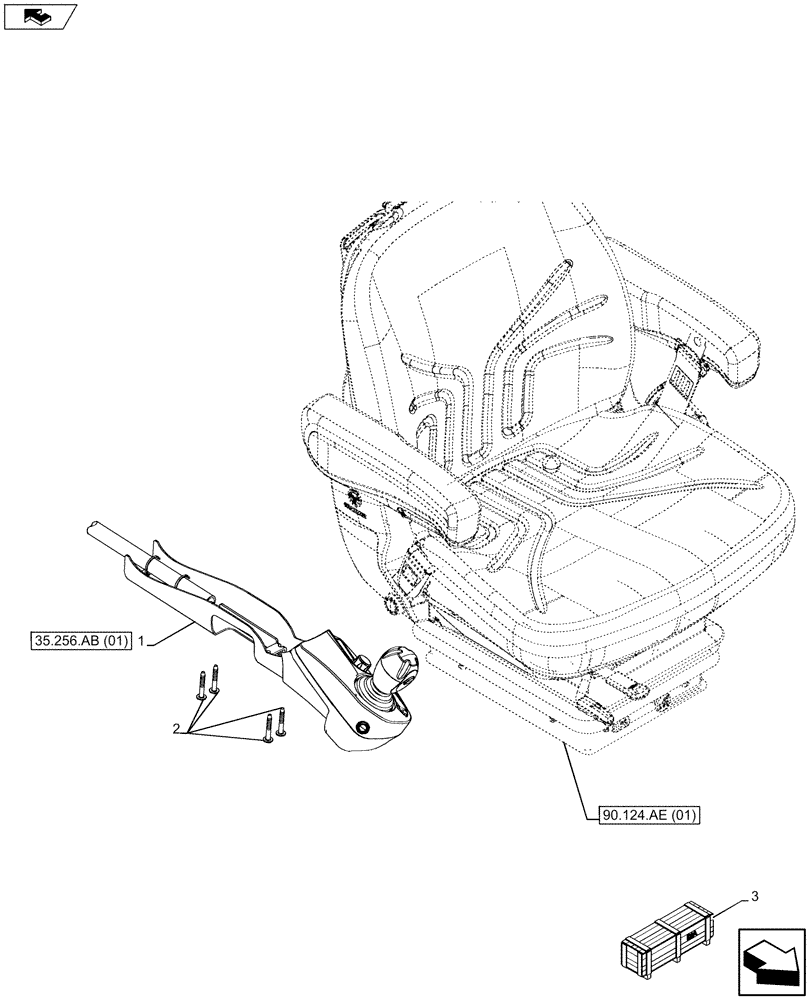

Схема запчастей Case IH FARMALL 115U - (55.512.CL) - VAR - 334127 - ELECTRONIC JOYSTICK (55) - ELECTRICAL SYSTEMS
35.256.ab (01)
home
3
1
home
2
90.124.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47515267

ARMREST

1шт.

see also Figure 55.512.CL 02

1шт.

2

47446819

SCREW,Torx, BTN HD, M6 x 42mm

4шт.

3

718196080

DIA KIT, TRACTOR

2 Electrohydraulic Mid Mount with Electronic Joystick, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
