(25.102.050) - VAR - 330308 - 4WD FRONT AXLE, ELECTROHYDRAULIC DIFFERENTIAL LOCK, HOUSING

Запчасти Case IH FARMALL 120U (25.102.050) - VAR - 330308 - 4WD FRONT AXLE, ELECTROHYDRAULIC DIFFERENTIAL LOCK, HOUSING (25) - FRONT AXLE SYSTEM

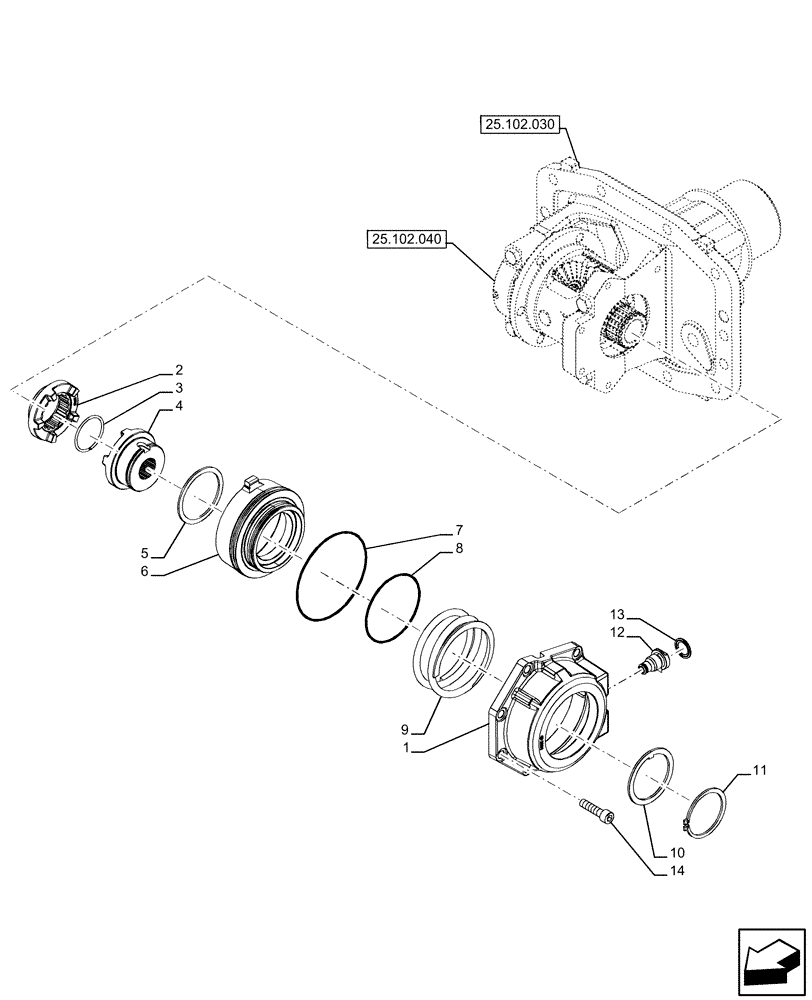

Схема запчастей Case IH FARMALL 120U - (25.102.050) - VAR - 330308 - 4WD FRONT AXLE, ELECTROHYDRAULIC DIFFERENTIAL LOCK, HOUSING (25) - FRONT AXLE SYSTEM
25.102.030
2
4
12
7
3
10
9
5
11
14
1
13
8
6
25.102.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5167740

HOUSING

1шт.

2

5167764

SLEEVE,50mm ID x 80mm OD x 29mm L

1шт.

3

5167721

SNAP RING,M50, Int

1шт.

4

47525160

COUPLING

1шт.

5

5167763

THRUST WASHER,67.5mm ID x 80mm OD x 2.8mm Thk

1шт.

6

5167749

PISTON

1шт.

7

14466581

O-RING,117.07mm ID x 4.887" OD x 3.53mm

1шт.

8

14465681

O-RING,3.484" ID x 3.762" OD x 0.139"

1шт.

9

5167827

SPRING,Compression, 110mm OD x 75mm L

1шт.

10

5167748

THRUST WASHER,65.2mm ID x 80mm OD x 3mm Thk

1шт.

11

11070076

SNAP RING,M65, Ext

1шт.

12

47417606

FITTING

1шт.

13

87665417

SEAL,18.1mm ID x 28mm OD x 2.5mm Thk

M20

1шт.

14

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

6шт.
