(55.404.230) - VAR - 335916 - 2 ROTARY BEACON

Запчасти Case IH FARMALL 120U (55.404.230) - VAR - 335916 - 2 ROTARY BEACON (55) - ELECTRICAL SYSTEMS

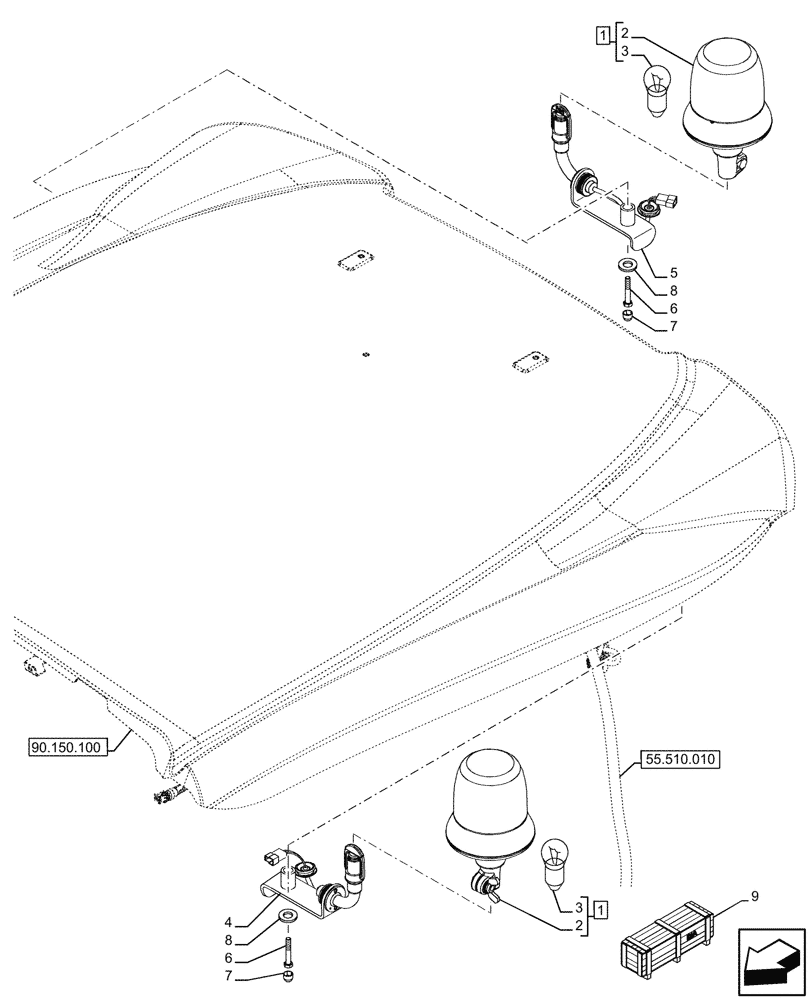

Схема запчастей Case IH FARMALL 120U - (55.404.230) - VAR - 335916 - 2 ROTARY BEACON (55) - ELECTRICAL SYSTEMS
90.150.100
2
4
7
1
3
6
8
9
1
3
2
5
6
7
8
55.510.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87723255

BEACON,12V, 55W, Amber

ASSY, Incl 2, 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Lamp, Incl in 1

2шт.

3

86616248

BULB,H1, 12V, 55W

2шт.

4

47788366

SUPPORT

LH

1шт.

5

47788367

SUPPORT

RH

1шт.

6

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

7

87516431

CUP,for M8 Nut

M8

2шт.

8

12602474

WAVE WASHER,Wave, M8.3

M8

2шт.

9

710762070

DIA KIT, TRACTOR

Rotary Beacon, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
