(88.100.44[01]) - DIA KIT, REAR WHEEL WEIGHT, 105LBS

Запчасти Case IH FARMALL 50A (88.100.44[01]) - DIA KIT, REAR WHEEL WEIGHT, 105LBS (88) - ACCESSORIES

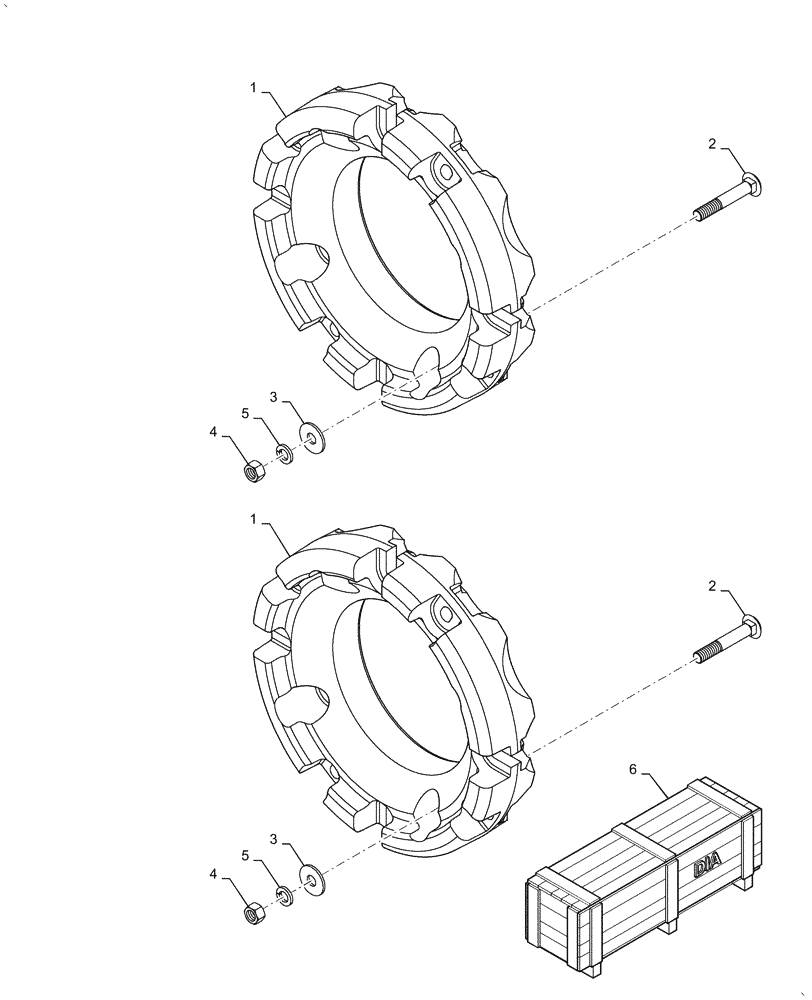

Схема запчастей Case IH FARMALL 50A - (88.100.44[01]) - DIA KIT, REAR WHEEL WEIGHT, 105LBS (88) - ACCESSORIES
3
4
5
3
2
1
1
6
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47735369

WHEEL WEIGHT

Rear CNH Grey

2шт.

2

280461

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

8шт.

3

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

5

86729275

LOCK WASHER,5/8 0.634 CST ZND

8шт.

6

718288022

DIA KIT, TRACTOR

Rear Wheel Weight R4 CIH

1шт.

Выбрано товаров: 6
