(55.414.01[01]) - ENGINE SENSOR UNITS

Запчасти Case IH FARMALL 65A (55.414.01[01]) - ENGINE SENSOR UNITS (55) - ELECTRICAL SYSTEMS

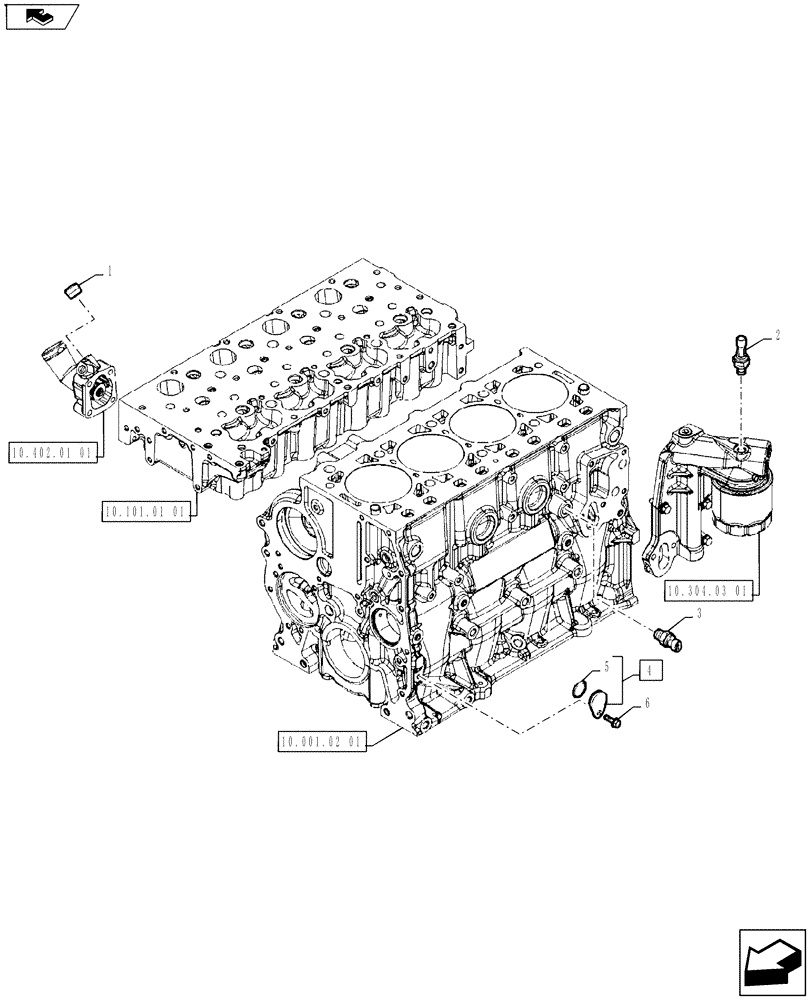

Схема запчастей Case IH FARMALL 65A - (55.414.01[01]) - ENGINE SENSOR UNITS (55) - ELECTRICAL SYSTEMS
10.402.01 01
10.304.03 01
10.001.02 01
10.101.01 01
1
5
6
2
3
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4895078

PIPE PLUG,1/2"-14

1шт.

2

2852889

PRESSURE SWITCH

1шт.

3

504273290

SENSOR

1шт.

4

504265734

PLUG

Includes Ref. 5

1шт.

5

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

17.17, SP = 1.78

1шт.

6

16585624

SCREW,Hex, M6 x 12mm, Cl 8.8

M6 x 12

1шт.

Выбрано товаров: 6
