(35.120.01[06]) - THIRD-LINK SPRAG - BREAKDOWN

Запчасти Case IH FARMALL 65C (35.120.01[06]) - THIRD-LINK SPRAG - BREAKDOWN (35) - HYDRAULIC SYSTEMS

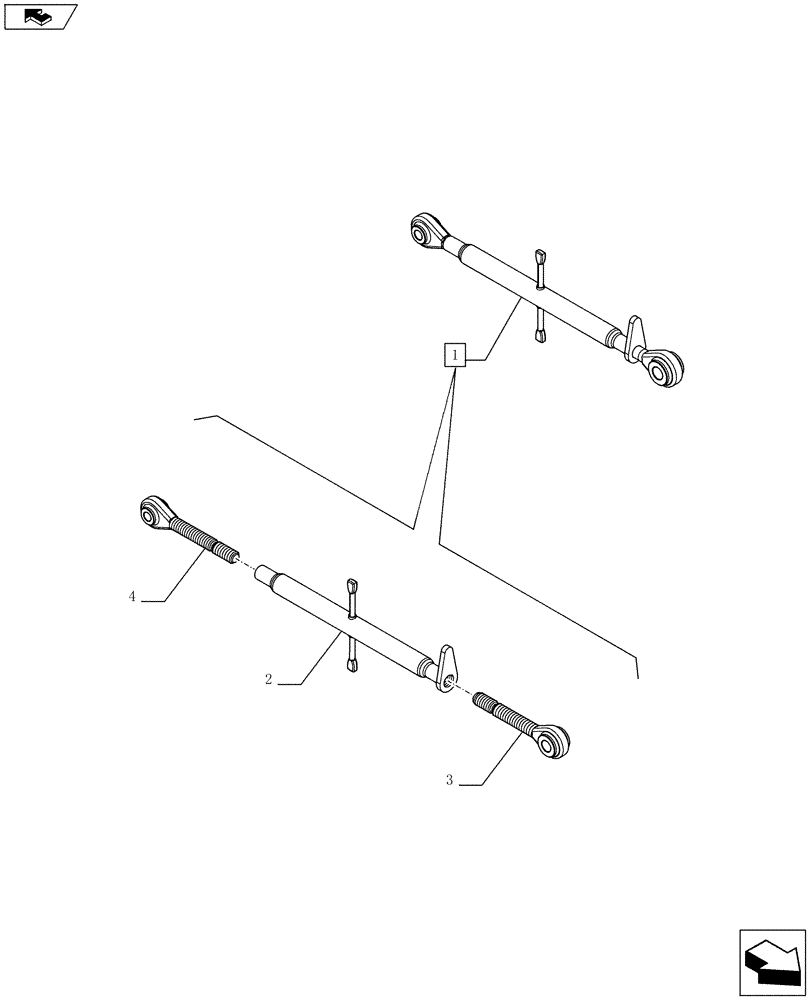

Схема запчастей Case IH FARMALL 65C - (35.120.01[06]) - THIRD-LINK SPRAG - BREAKDOWN (35) - HYDRAULIC SYSTEMS
2
3
4
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84204061

TOP LINK

ASSY, Contains Ref. 2-4

1шт.

2

84266147

ADJUSTING SLEEVE

1шт.

3

84266148

THREADED TIE-ROD

1шт.

4

84266136

THREADED TIE-ROD

1шт.

Выбрано товаров: 4
