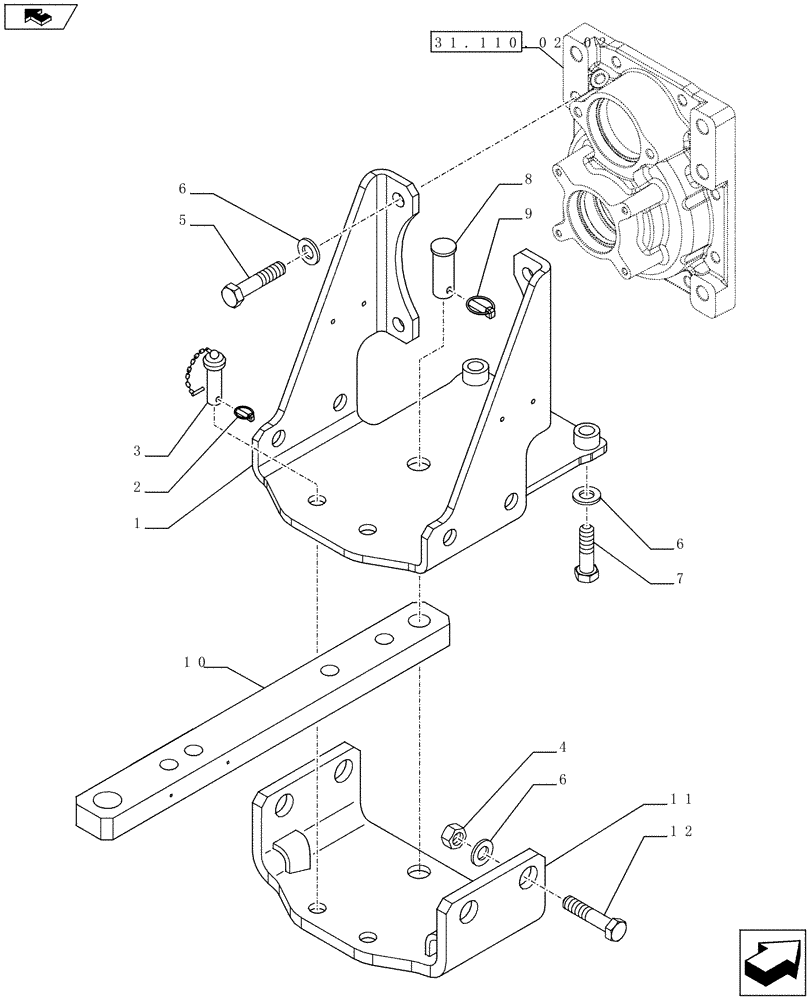

Запчасти Case IH FARMALL 65C (37.100.01) - SWINGING DRAWBAR AND SUPPORT - NAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84311143

SUPPORT

1шт.

2

44903774

LOCK PIN,4.8mm OD x 40mm L

2шт.

3

84311147

PIN,16mm OD x 80mm L

2шт.

4

12164124

NUT,M16 x 1.5, Cl 8

4шт.

5

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

4шт.

6

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

10шт.

7

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

2шт.

8

84311145

PIVOT,32mm OD x 80mm L

1шт.

9

47133246

LOCK PIN,7.5mm OD x 42mm L

1шт.

10

84311146

DRAWBAR,565mm L x 30mm Thk

1шт.

11

84311144

SUPPORT

1шт.

12

15840524

SCREW,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.
