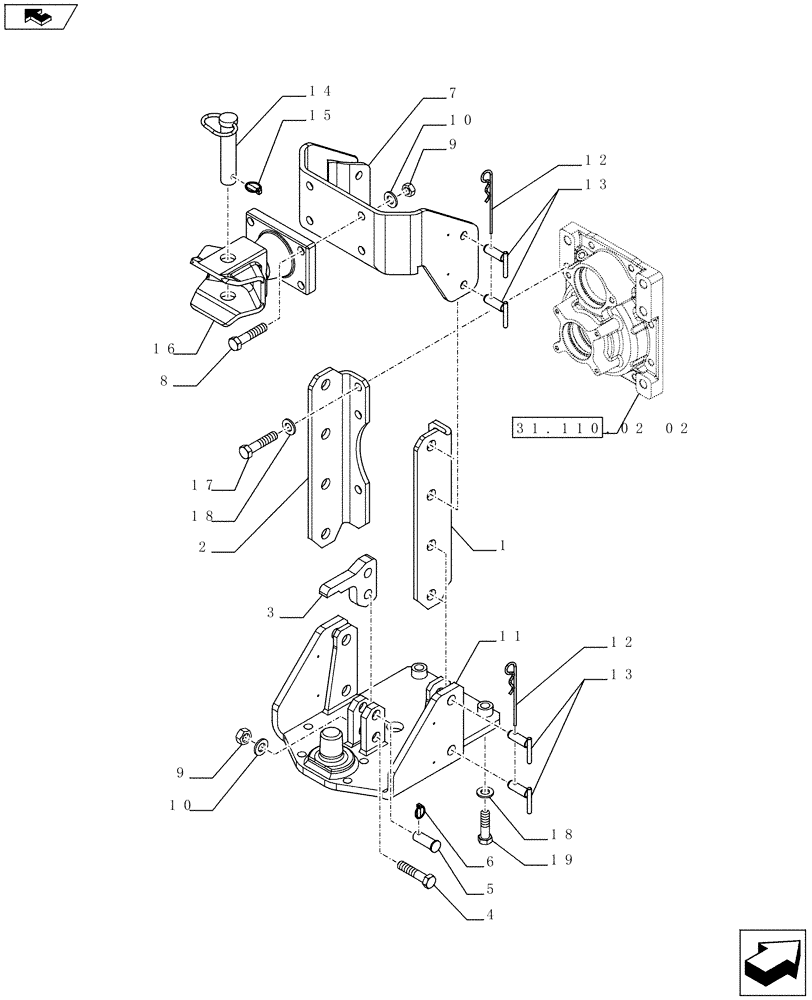

Запчасти Case IH FARMALL 65C (37.100.0105) - SWIVEL TRAILER HITCH, FRANCE - PIN SUPPORT - ISO (VAR.330893) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84322763

SUPPORT

1шт.

2

84322767

SUPPORT

1шт.

3

84322776

LEVER

1шт.

4

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

1шт.

5

84311147

PIN,16mm OD x 80mm L

1шт.

6

44903774

LOCK PIN,4.8mm OD x 40mm L

1шт.

7

84322759

SUPPORT

1шт.

8

15840524

SCREW,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

9

12164124

NUT,M16 x 1.5, Cl 8

4шт.

10

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

5шт.

11

84322773

BASE PLATE

1шт.

12

84322781

HAIR PIN COTTER

4шт.

13

47130503

PIN,22mm OD x 70mm L

8шт.

14

84311149

HITCH PIN,31.5mm OD x 165.5mm L

1шт.

15

44903774

LOCK PIN,4.8mm OD x 40mm L

1шт.

16

84322902

TOW HOOK

1шт.

17

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.

18

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

19

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

2шт.
