(55.512.04) - RADIO - RADIO, ANTENNA AND SPEAKERS - W/CAB (VAR.333777)

Запчасти Case IH FARMALL 65C (55.512.04) - RADIO - RADIO, ANTENNA AND SPEAKERS - W/CAB (VAR.333777) (55) - ELECTRICAL SYSTEMS

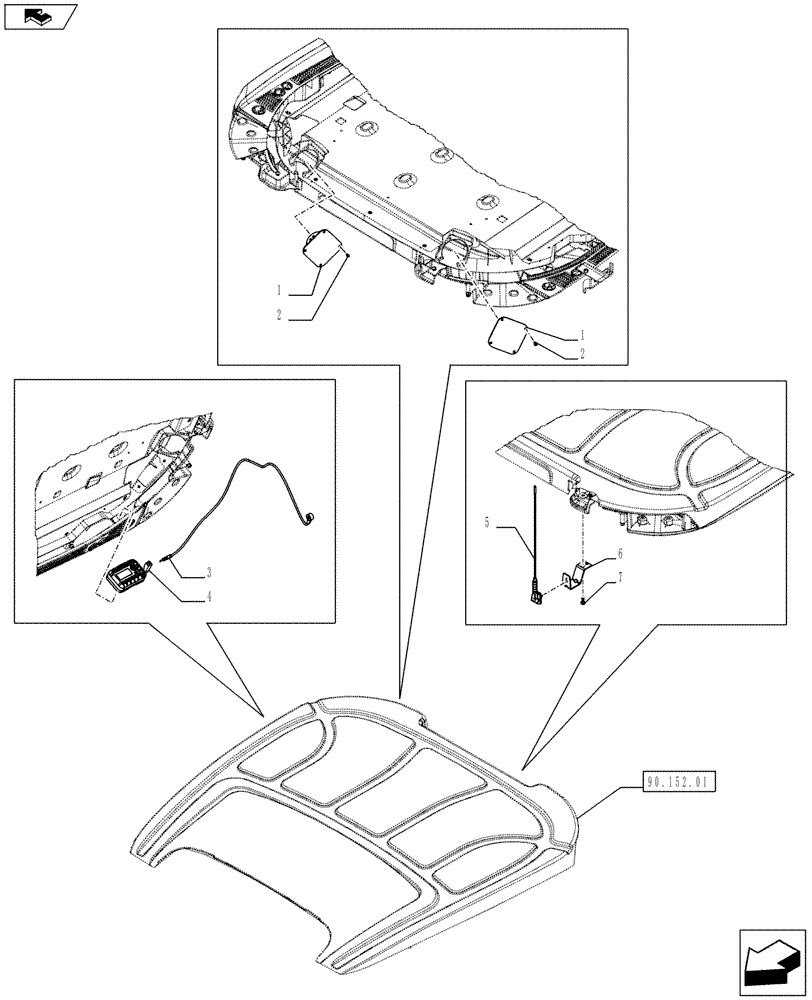

Схема запчастей Case IH FARMALL 65C - (55.512.04) - RADIO - RADIO, ANTENNA AND SPEAKERS - W/CAB (VAR.333777) (55) - ELECTRICAL SYSTEMS
1
2
7
6
5
90.152.01
1
4
3
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87316592

SPEAKER

, Serial Range: -C6886

2шт.

1

82014549

SPEAKER

, Start Serial: D6886

2шт.

2

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

8шт.

3

84300605

ELECTRIC CABLE

1шт.

4

87672223

RADIO,WB/AM/FM/XM/AUX

Mini Wp Am, Fm, Xmband

1шт.

5

87361686

ANTENNA

, Serial Range: -C6886

1шт.

5

82008643

ANTENNA

, Start Serial: D6886

1шт.

6

84340392

BRACKET

1шт.

7

84188431

SCREW,Pan HD, M8 x 25mm, Cl 8.8

M8 x 25

1шт.
