(90.120.0103[01]) - VINYL SEAT - L/CAB - NAR

Запчасти Case IH FARMALL 65C (90.120.0103[01]) - VINYL SEAT - L/CAB - NAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

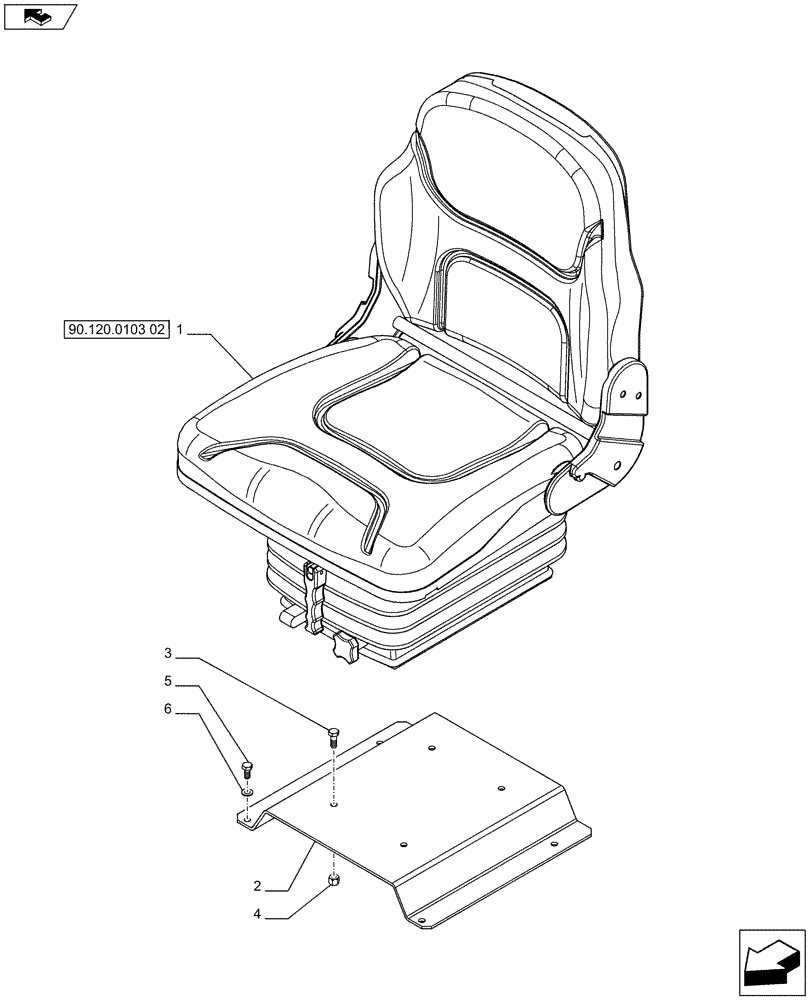

Схема запчастей Case IH FARMALL 65C - (90.120.0103[01]) - VINYL SEAT - L/CAB - NAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
6
90.120.0103 02
4
5
home
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84352963

SEAT

1шт.

2

84309301

SEAT SUPPORT

1шт.

3

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

5

16043331

SCREW,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

4шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.
