(90.124.01[03]) - FABRIC SEAT WITH SAFETY SWITCH, ARMREST AND AIR SUSPENSION - W/CAB (VAR.331850)

Запчасти Case IH FARMALL 65C (90.124.01[03]) - FABRIC SEAT WITH SAFETY SWITCH, ARMREST AND AIR SUSPENSION - W/CAB (VAR.331850) (90) - PLATFORM, CAB, BODYWORK AND DECALS

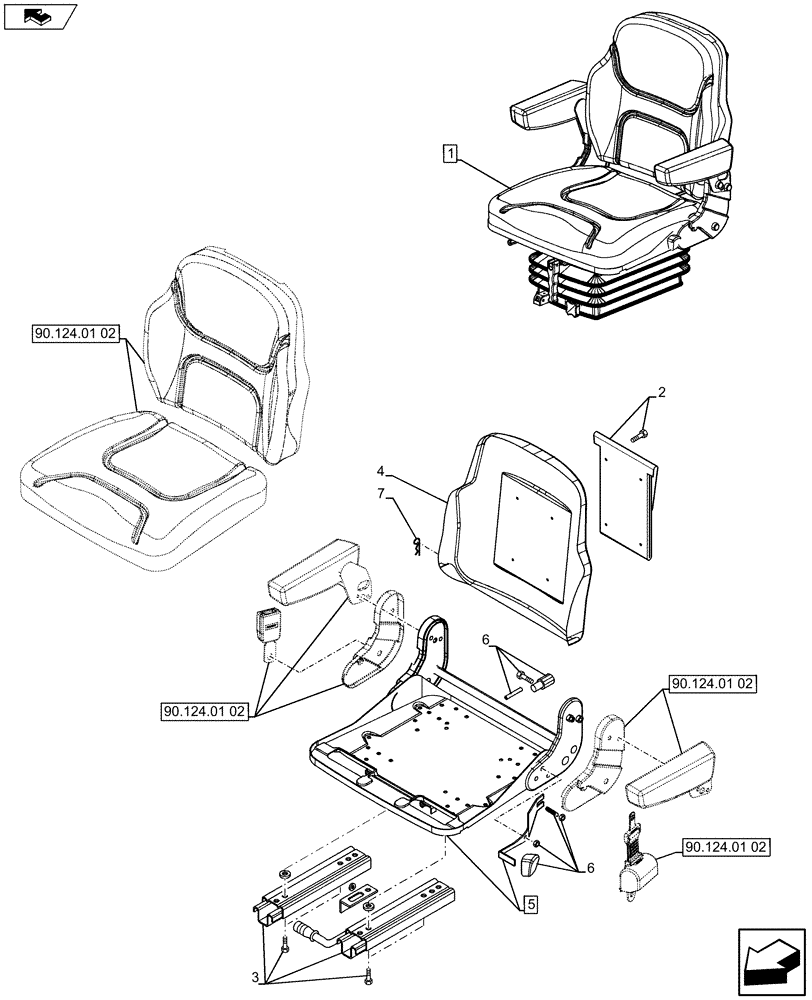

Схема запчастей Case IH FARMALL 65C - (90.124.01[03]) - FABRIC SEAT WITH SAFETY SWITCH, ARMREST AND AIR SUSPENSION - W/CAB (VAR.331850) (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
90.124.01 02
90.124.01 02
90.124.01 02
2
1
home
6
4
90.124.01 02
3
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

Assy, Incl 2 - 7

1шт.

Includes Also 90.124.01 (02), 90.124.01 (04) to 90.124.01 (05)

1шт.

2

84351150

KIT

Vinyl Document Pouch

1шт.

3

47439040

KIT

RH & LH Rails

1шт.

4

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.

5

47388080

KIT

Hardware, Assy, Incl 6

1шт.

6

47387993

KIT

Hardware

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.
