(1.92.94/01A[02]) - AIR CONDITIONING - BREAKDOWN - C7039

Запчасти Case IH FARMALL 70 (1.92.94/01A[02]) - AIR CONDITIONING - BREAKDOWN - C7039 (10) - OPERATORS PLATFORM/CAB

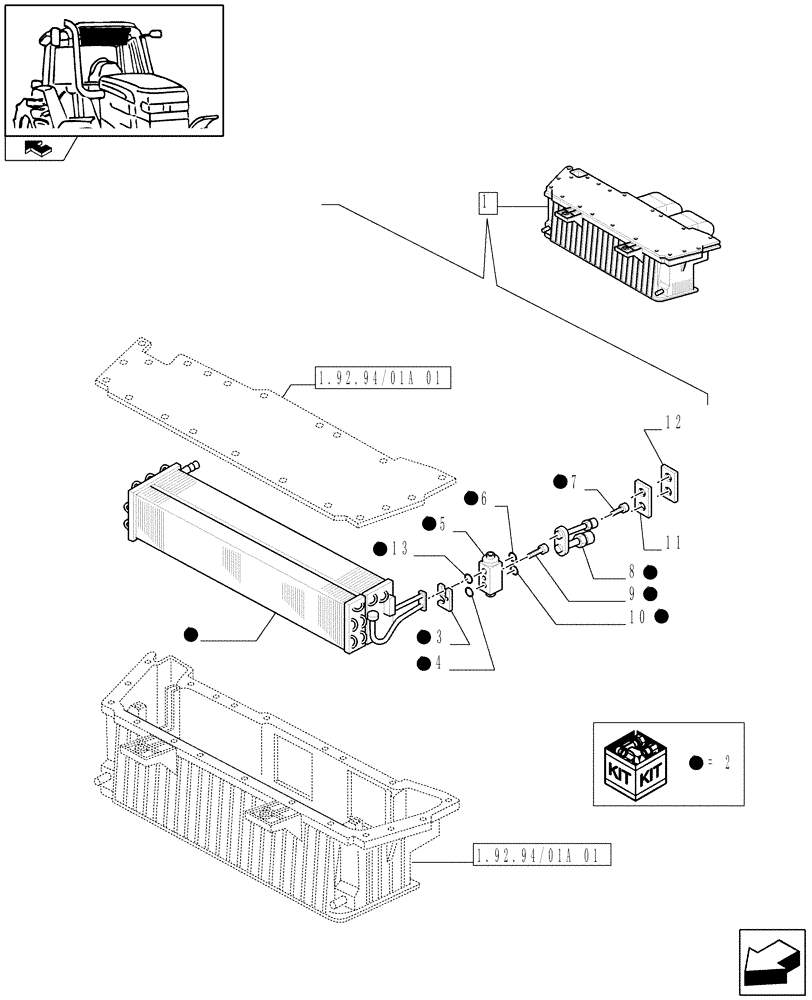

Схема запчастей Case IH FARMALL 70 - (1.92.94/01A[02]) - AIR CONDITIONING - BREAKDOWN - C7039 (10) - OPERATORS PLATFORM/CAB
2
13
2
7
home
5
1
2
2
2
2
2
2
12
4
10
2
11
2
8
1.92.94/01a 01
3
1.92.94/01a 01
2
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82034850

AIR CONDITIONER

& HEATER, ASSY

1шт.

2

82034855

EVAPORATOR

1шт.

3

81874723

PLATE

1шт.

4

82000792

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

5

82034858

VALVE

1шт.

6

82000791

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

81874722

HEX SOC SCREW,M6 x 15mm

1шт.

8

82009113

TUBE,60, 26 mm Length

Evaporator and Heat Exchanger

1шт.

9

81874721

HEX SOC SCREW,M5 x 39.5mm

2шт.

10

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk, Green

1шт.

11

82009242

GASKET

1шт.

12

81872757

SEAL

1шт.

13

82000789

O-RING,1.85mm Thk x 17.6mm ID

1шт.
