(37.140.0201) - 6 REAR BALLAST (32KG) - NAR (VAR.331470)

Запчасти Case IH FARMALL 75C (37.140.0201) - 6 REAR BALLAST (32KG) - NAR (VAR.331470) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

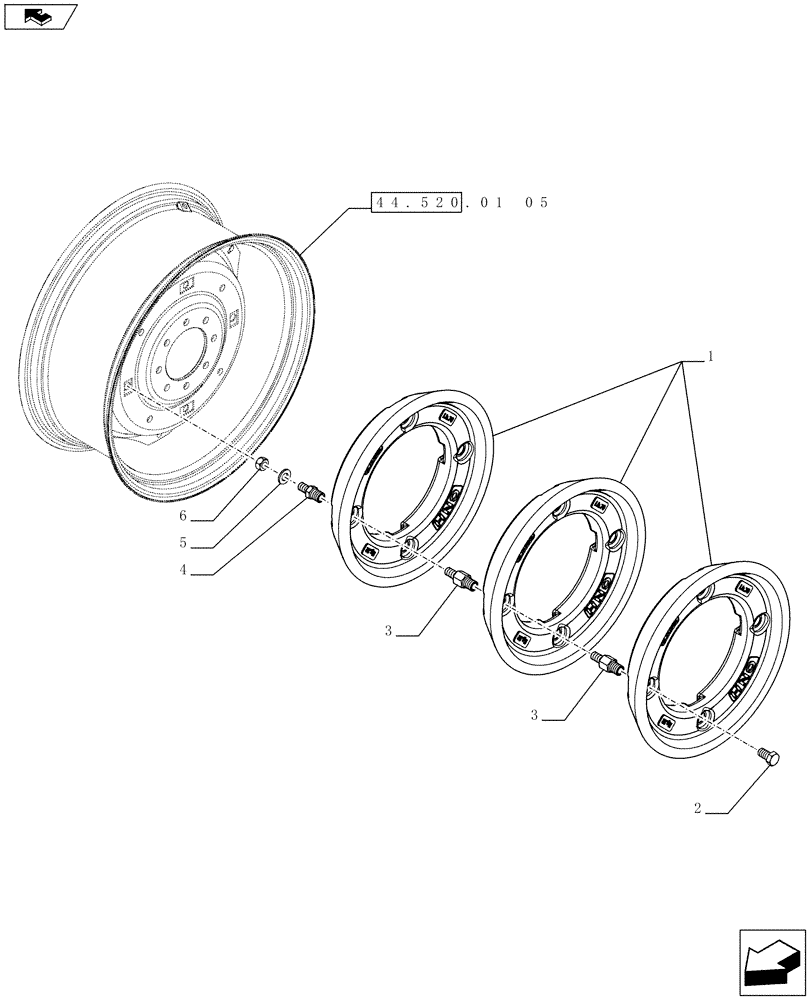

Схема запчастей Case IH FARMALL 75C - (37.140.0201) - 6 REAR BALLAST (32KG) - NAR (VAR.331470) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
6
1
3
5
home
44.520.01 05
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47131265

WHEEL DISC,330mm Dia, 4 Bolts, CNH Dark Grey

6шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

16шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

8шт.

5

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

6

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

8шт.
