(1.75.0/03) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - ELECTRIC CONTROLS (VAR.330120-331120)

Запчасти Case IH FARMALL 80 (1.75.0/03) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - ELECTRIC CONTROLS (VAR.330120-331120) (06) - ELECTRICAL SYSTEMS

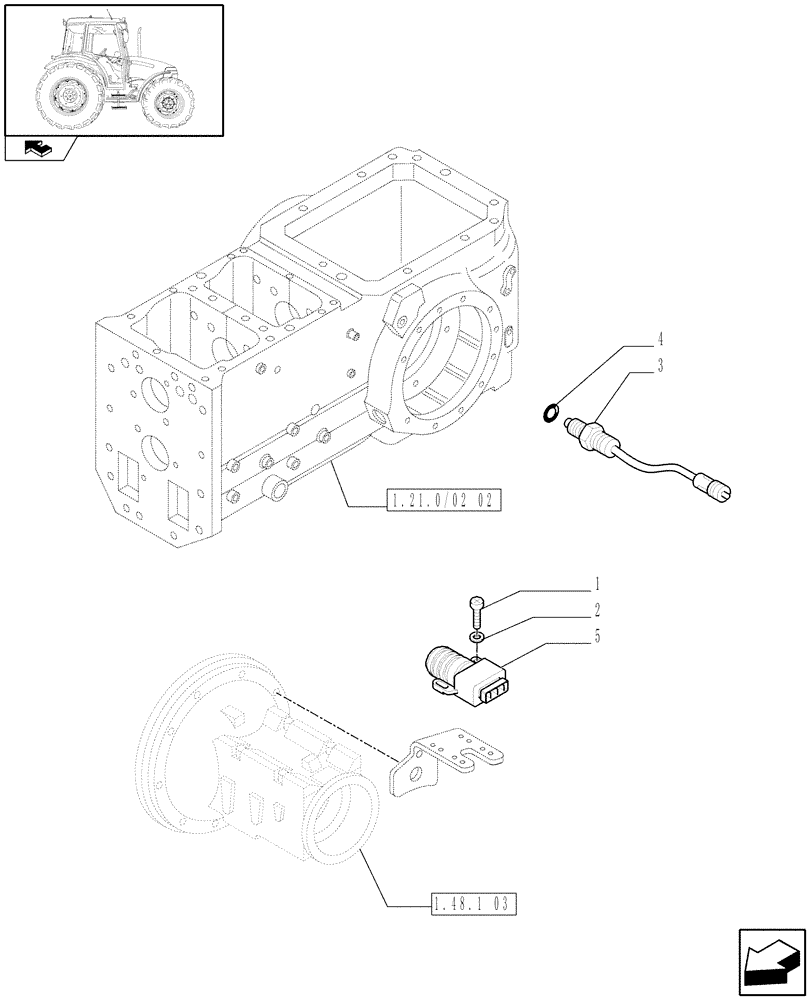

Схема запчастей Case IH FARMALL 80 - (1.75.0/03) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - ELECTRIC CONTROLS (VAR.330120-331120) (06) - ELECTRICAL SYSTEMS
1.48.1 03
home
1.21.0/02 02
5
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13272111

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

2

12601074

WAVE WASHER,4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

2шт.

3

84292066

SWITCH,M14 x 1.5

Red

1шт.

4

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

5

47137022

SWITCH

1шт.
