(1.80.4/ A) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PTO CLUTCH CONTROL ACTUATOR CYLINDER - BREAKDOWN (VAR.330120-331120)

Запчасти Case IH FARMALL 80 (1.80.4/ A) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PTO CLUTCH CONTROL ACTUATOR CYLINDER - BREAKDOWN (VAR.330120-331120) (07) - HYDRAULIC SYSTEM

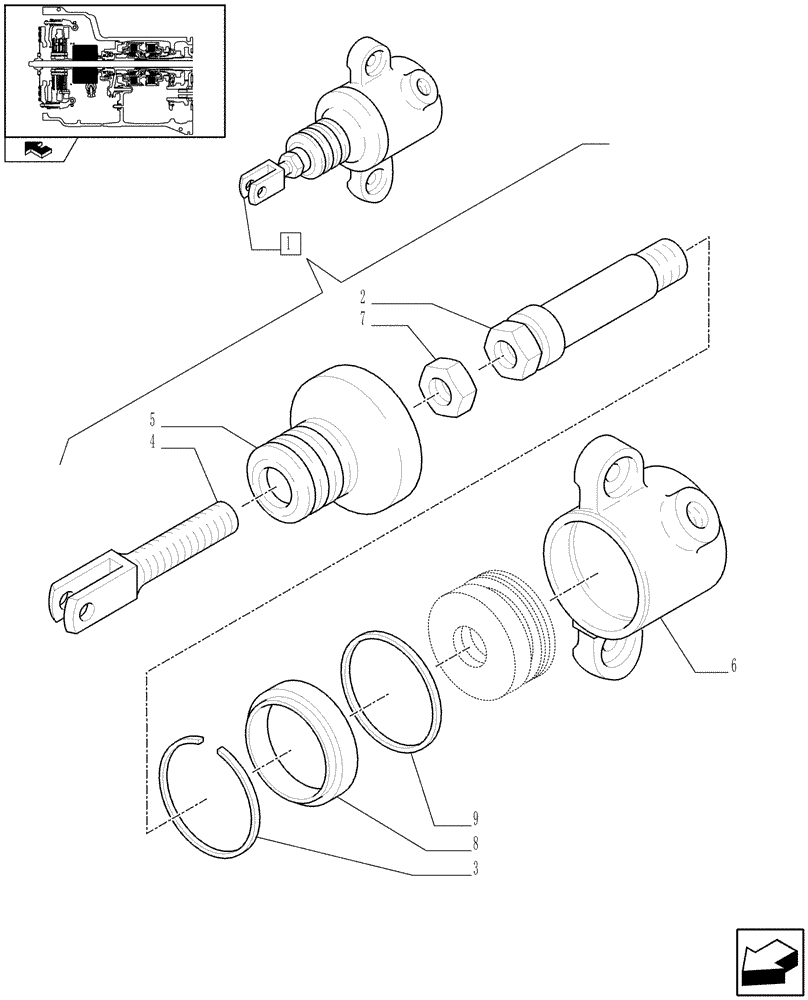

Схема запчастей Case IH FARMALL 80 - (1.80.4/ A) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PTO CLUTCH CONTROL ACTUATOR CYLINDER - BREAKDOWN (VAR.330120-331120) (07) - HYDRAULIC SYSTEM
6
home
3
5
8
2
1
4
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84332855

CONTROL VALVE

ASSY

1шт.

2

5183661

PROP

1шт.

3

5183662

CIRCLIP

1шт.

4

5183675

CLEVIS,M10 x 1.25mm

1шт.

5

5183723

BELLOWS

1шт.

6

84332854

CONTROL VALVE

1шт.

7

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

8

5185834

SEAL,45mm ID x 55mm OD x 7mm Thk

1шт.

9

5185835

RING,51.8mm ID x 55mm OD x 2.5mm Thk

1шт.
