(1.15.1/04) - VERTICAL MUFFLER SHIELD GUARD PROTECTION (VAR.335134-335136)

Запчасти Case IH FARMALL 90 (1.15.1/04) - VERTICAL MUFFLER SHIELD GUARD PROTECTION (VAR.335134-335136) (02) - ENGINE EQUIPMENT

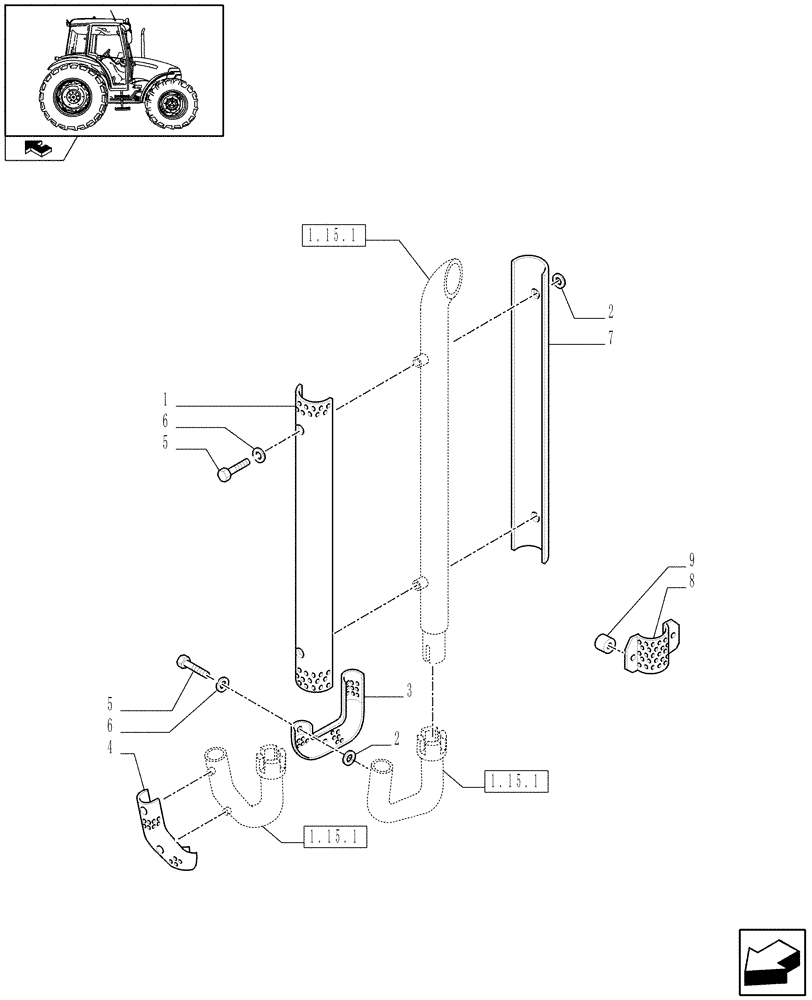

Схема запчастей Case IH FARMALL 90 - (1.15.1/04) - VERTICAL MUFFLER SHIELD GUARD PROTECTION (VAR.335134-335136) (02) - ENGINE EQUIPMENT
6
home
9
8
7
2
5
1
3
4
5
6
2
1.15.1
1.15.1
1.15.1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091586

GUARD

1100 mm

1шт.

Qty. 2 for VAR.335134, Qty. 1 for VAR.335136

1шт.

2

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6шт.

3

87650148

GUARD

1шт.

4

5095426

SUPPORT

1шт.

For High Clearance Version Valid for 95 Model only

1шт.

5

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

6шт.

6

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.

7

5091489

GUARD

1000 mm

1шт.

Vertical Muffler Shield Guard Protection for Dust Ejector, VAR.335136

1шт.

8

87734214

GUARD

1шт.

9

87734218

BUSHING

2шт.
