(1.17.0/02) - TROPICAL VISCOUS FAN - FAN SHROUD AND CONVEYOR (VAR.333009)

Запчасти Case IH FARMALL 90 (1.17.0/02) - TROPICAL VISCOUS FAN - FAN SHROUD AND CONVEYOR (VAR.333009) (02) - ENGINE EQUIPMENT

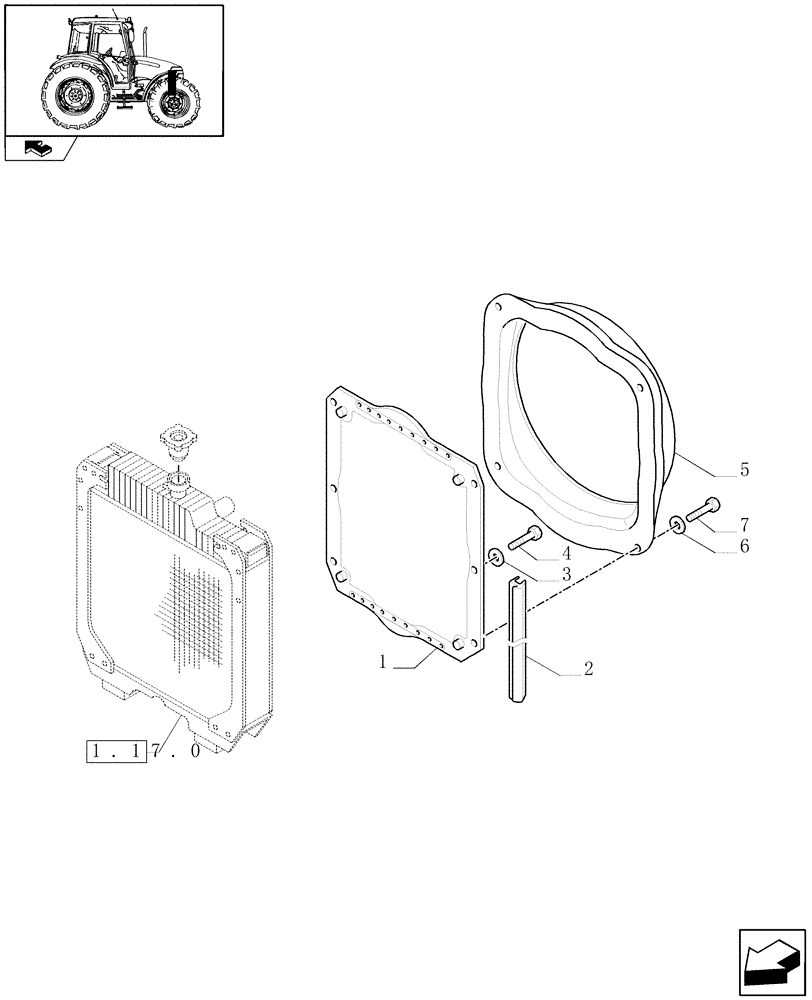

Схема запчастей Case IH FARMALL 90 - (1.17.0/02) - TROPICAL VISCOUS FAN - FAN SHROUD AND CONVEYOR (VAR.333009) (02) - ENGINE EQUIPMENT
1.17.0
5
3
4
7
2
1
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84211918

SHROUD

1шт.

2

84211923

SEAL

1шт.

3

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

4

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

5

87337410

GUARD

1шт.

6

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.
