Запчасти Case IH FARMALL 90 (1.75.0[01]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

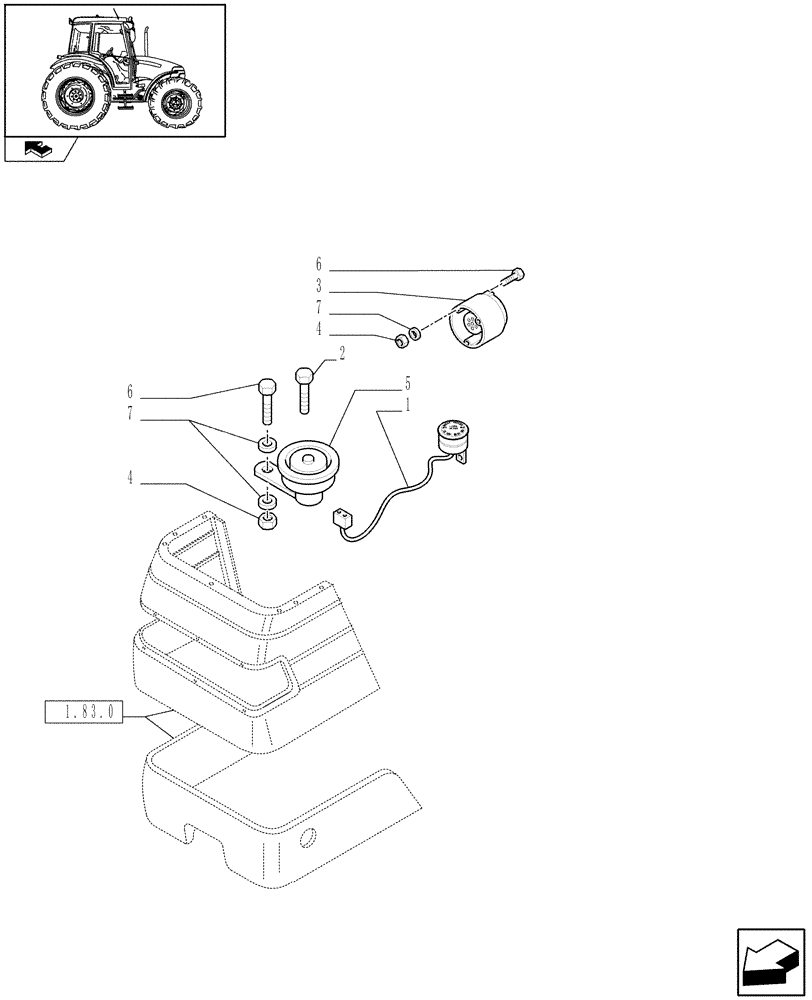

Схема запчастей Case IH FARMALL 90 - (1.75.0[01]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS
1
3
2
4
6
6
5
7
home
4
1.83.0
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5094111

HORN

1шт.

2

10559807

SELF-TAP SCREW,Hex Flg, M6.3 x 16mm

1шт.

3

5086173

ELEC CONNECTOR

1шт.

4

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

5

5087129

HORN

1шт.

6

10390211

SCREW,Sl Pan Hd, M5 x 35mm, Cl 5.8

3шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.
