(1.92.87/01) - REAR FENDERS IN LOW POSITION WITH EXTENDED GRABRAILS - L/CAB (VAR.330492)

Запчасти Case IH FARMALL 90 (1.92.87/01) - REAR FENDERS IN LOW POSITION WITH EXTENDED GRABRAILS - L/CAB (VAR.330492) (10) - OPERATORS PLATFORM/CAB

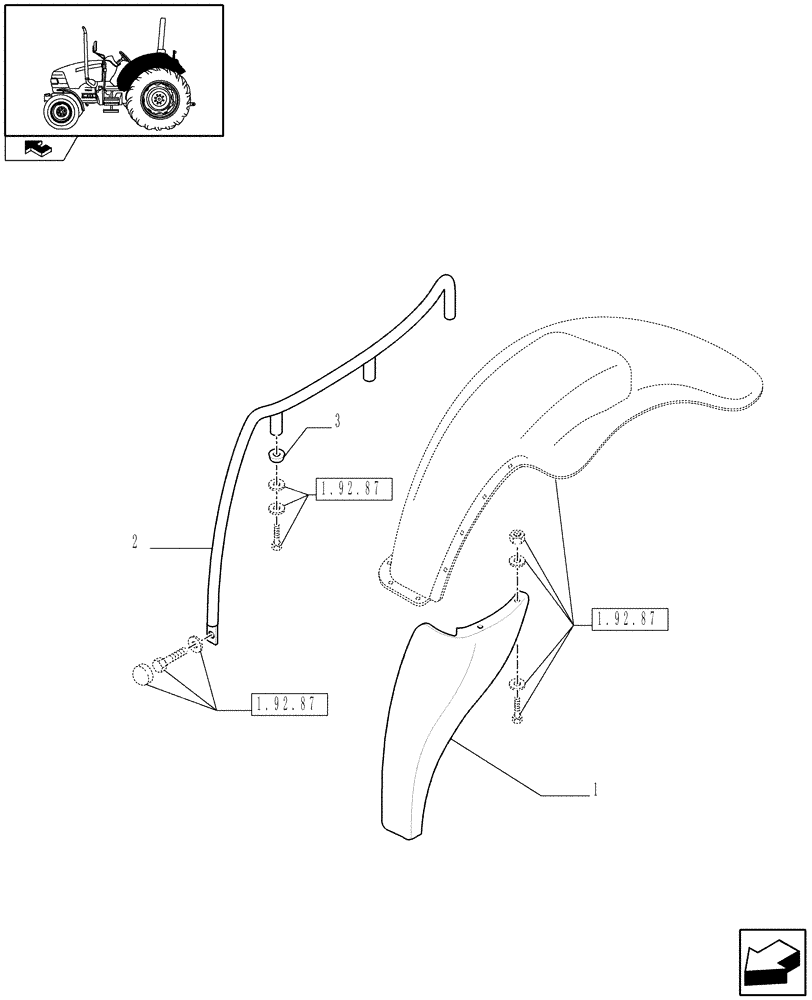

Схема запчастей Case IH FARMALL 90 - (1.92.87/01) - REAR FENDERS IN LOW POSITION WITH EXTENDED GRABRAILS - L/CAB (VAR.330492) (10) - OPERATORS PLATFORM/CAB
1
1.92.87
1.92.87
1.92.87
3
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089972

FENDER EXTENSION

RH

1шт.

1

5089973

FENDER EXTENSION

LH

1шт.

2

5090411

GRAB STRAP

RH

1шт.

2

5090413

GRAB STRAP

LH

1шт.

3

5092184

SEAL

6шт.
