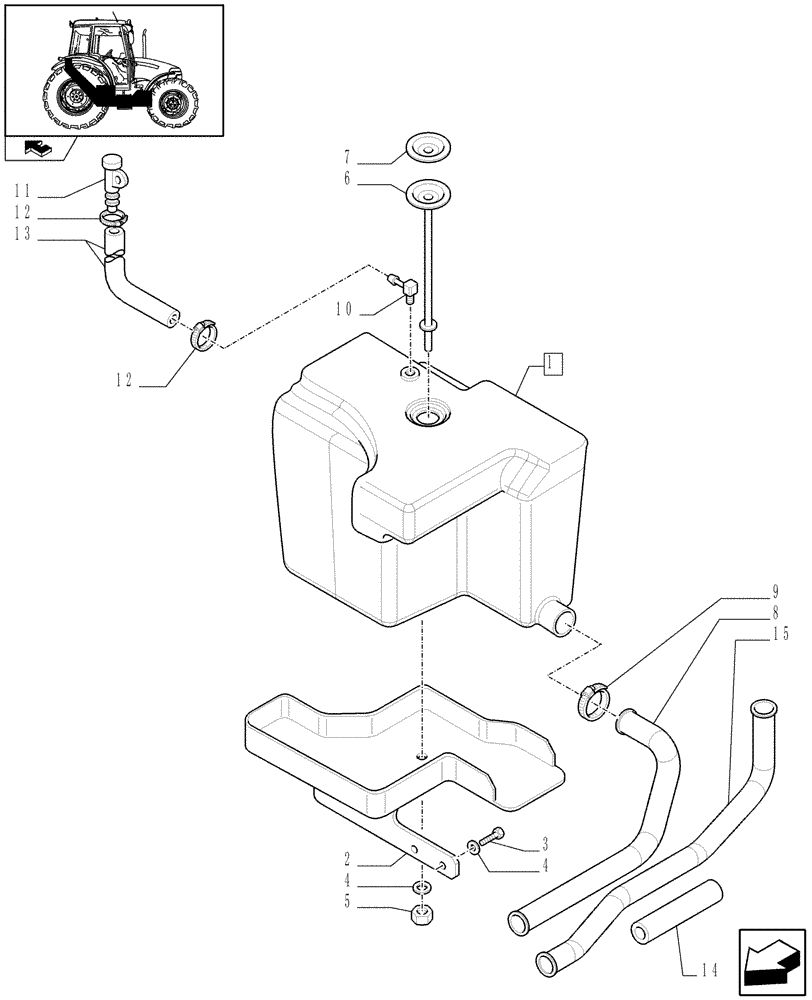

Запчасти Case IH FARMALL 90 (1.14.0/01) - AUXILIARY FUEL TANK (VAR.335042) (02) - ENGINE EQUIPMENT

1

87626255

FUEL TANK

Incl. 10

1шт.

2

87612497

SUPPORT

1шт.

3

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

3шт.

5

12164714

NUT,M10 x 1.25, Cl 8

1шт.

6

87612502

SENDER UNIT

1шт.

7

87612509

FIXING STRIP

1шт.

8

87618891

PIPE

, Serial Range: -C7046

1шт.

9

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

4шт.

10

5091906

ELBOW

1шт.

11

5153270

BREATHER

1шт.

12

5085797

CLAMP

2шт.

13

5094135

TUBE

1шт.

13

84486100

PIPE

, Start Serial: D7046

1шт.

14

87626258

FUEL HOSE,45.00 mm ID x 90.00 mm, SAE J200

1шт.
