(1.82.7/07) - MID-MOUNT VALVES HYDRAULIC CONNECTION - FOR HIGH CLEARANCE VERSION (VAR.336560)

Запчасти Case IH FARMALL 95 (1.82.7/07) - MID-MOUNT VALVES HYDRAULIC CONNECTION - FOR HIGH CLEARANCE VERSION (VAR.336560) (07) - HYDRAULIC SYSTEM

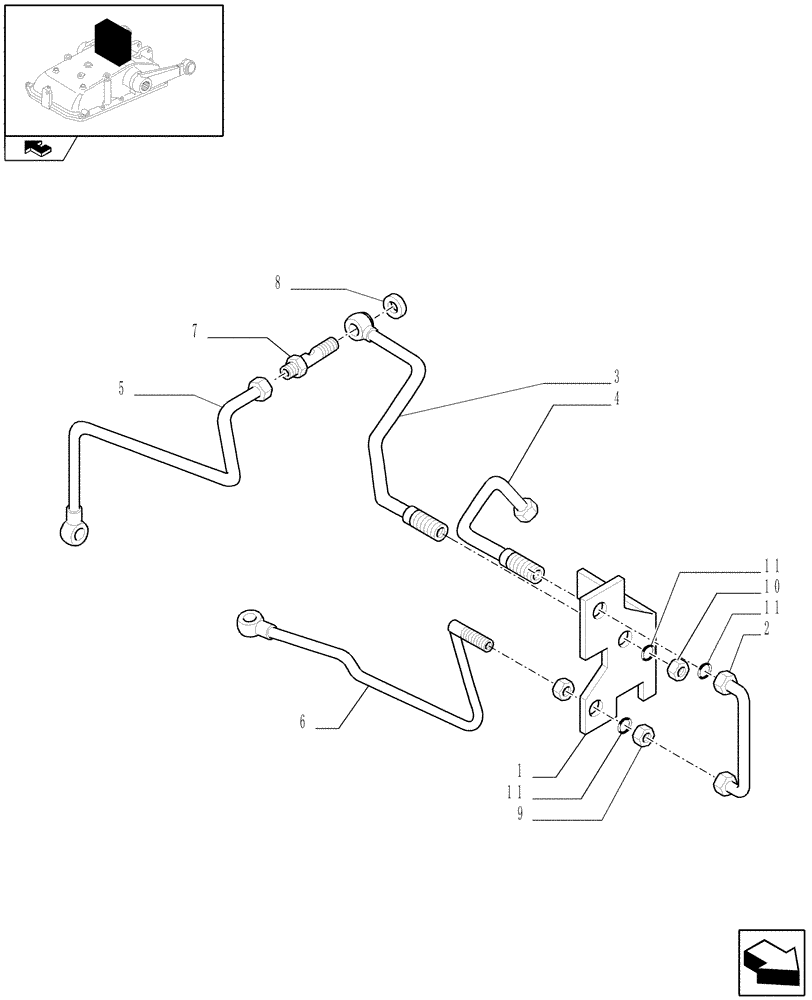

Схема запчастей Case IH FARMALL 95 - (1.82.7/07) - MID-MOUNT VALVES HYDRAULIC CONNECTION - FOR HIGH CLEARANCE VERSION (VAR.336560) (07) - HYDRAULIC SYSTEM
7
5
11
4
8
3
1
11
2
10
6
9
home
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87301895

SUPPORT

1шт.

2

87301888

HYD TUBE

1шт.

3

87644869

PIPE

Manifold Return

1шт.

4

84268363

PIPE

Manifold Pressure

1шт.

5

87391316

TUBE

Remote Valve Return

1шт.

6

84328172

PIPE

Manifold Delivery

1шт.

7

87640345

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5092958

BHD LOCK NUT,1" 1/4 UNF

6шт.

10

5092959

NUT

1шт.

11

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.
