(1.81.9/02[03]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - LINK AND SUPPORTS (VAR.330848-331848-332848-333848)

Запчасти Case IH FARMALL 95C (1.81.9/02[03]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - LINK AND SUPPORTS (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM

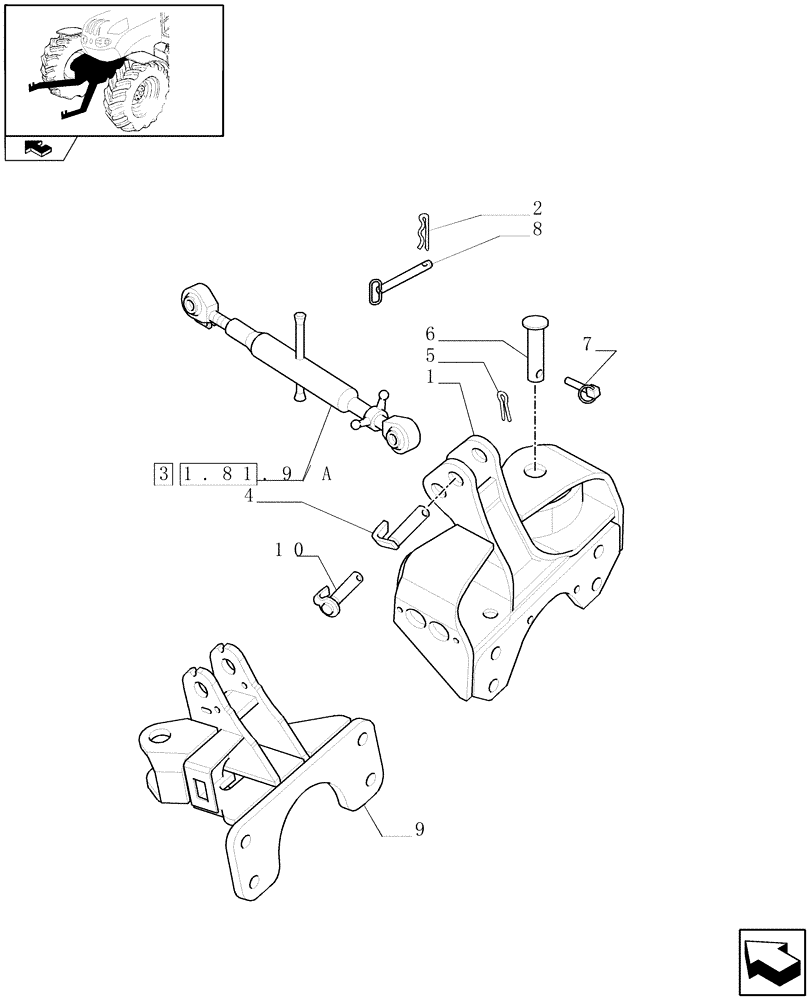

Схема запчастей Case IH FARMALL 95C - (1.81.9/02[03]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - LINK AND SUPPORTS (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM
9
4
home
1.81.9/a
5
8
7
3
10
6
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47057407

SUPPORT

, Serial Range: -C6321

1шт.

2

47056731

SPRING CLIP

1шт.

3

47057697

TOP LINK

ASSY

1шт.

3

87302526

TOP LINK

ASSY, Serial Range: -C6321

1шт.

3

84172160

TOP LINK

, Start Serial: D6321

1шт.

4

47057435

PIN

, Serial Range: -C6321

1шт.

5

5112606

COTTER PIN,2.5mm OD x 66.5mm L

1шт.

6

5184366

PIN

1шт.

7

5166585

LOCK PIN,11mm OD

1шт.

8

47057367

PIN

1шт.

9

84161166

SUPPORT

, Start Serial: D6321

1шт.

10

84172156

PIN

, Start Serial: D6321

1шт.
