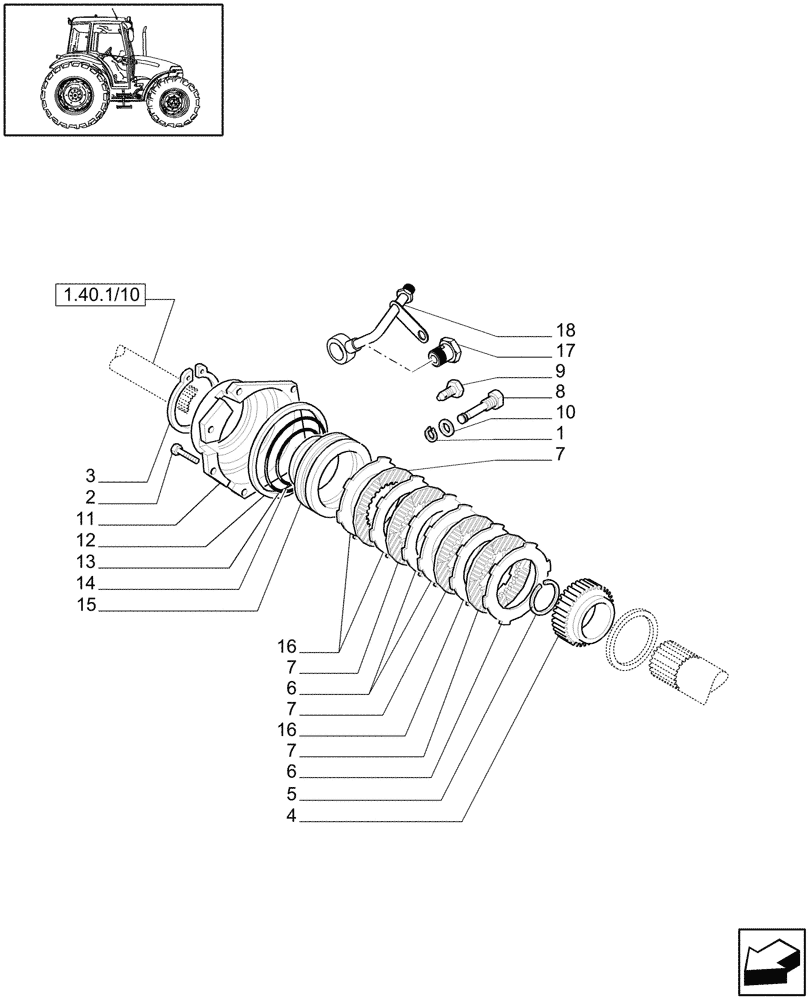

Запчасти Case IH JX90 (1.40.1/09[02]) - (VAR.115) 20X12 TRANSMISSION W/FRONT BRAKE & LIMITED SLIP - FRONT BRAKE DISCS (04) - FRONT AXLE & STEERING

1

14452781

O-RING,6.07mm ID x 1.78" Width

2шт.

2

5144633

SCREW

6шт.

3

11071876

SNAP RING,M100, Ext

1шт.

4

5146003

HUB

1шт.

5

11069876

SNAP RING,M60, Ext

1шт.

6

5146228

CLUTCH PLATE,99mm ID x 142mm OD x 3.6mm Thk

3шт.

7

47033066

DISC,80mm ID x 140mm OD x 2.4mm Thk

6шт.

8

5146002

HYD CONNECTOR

2шт.

9

5106843

BLEEDER,Bleeder, M12 x 1.25 x 24mm

1шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

5144626

CUP COVER

1шт.

12

5144630

RING

1шт.

13

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

14

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

15

47791905

PISTON

1шт.

16

5163840

DRIVE PLATE

5шт.

17

5147395

BANJO BOLT

1шт.

18

5147392

PIPE

1шт.
