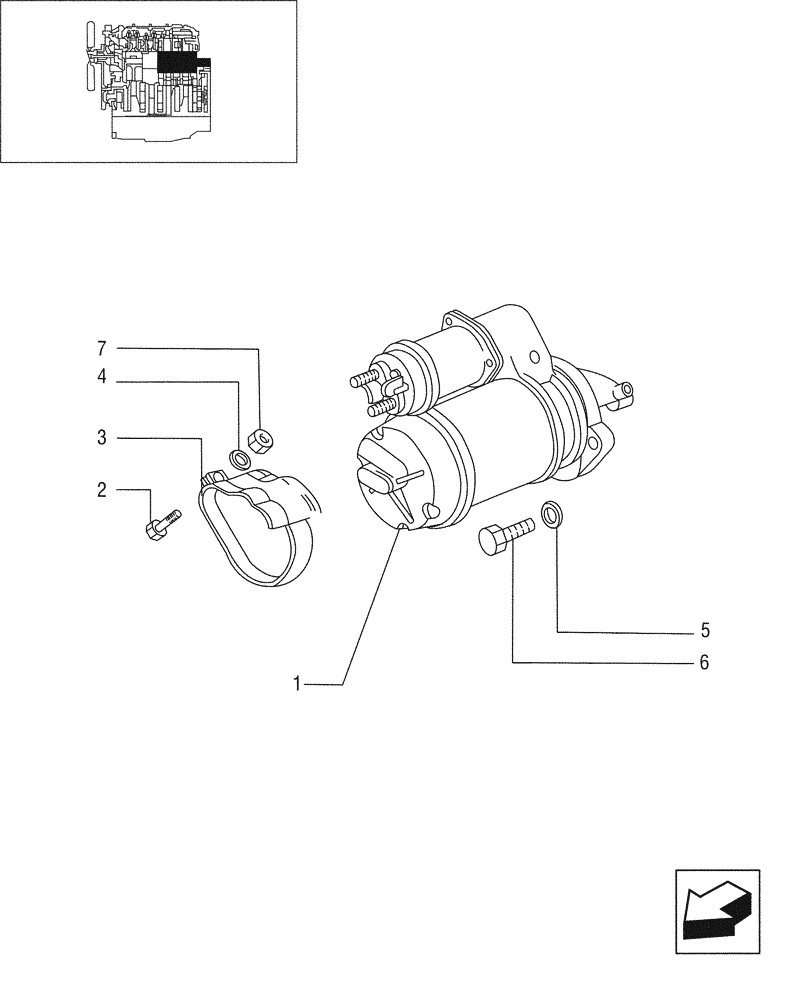

Запчасти Case IH JX95 (0.36.0/03) - VAR - 747, 391102 - TTF ENGINE TIER 2 - STARTER MOTOR (01) - ENGINE

1

87376491

STARTER MOTOR

JX60-JX70

1шт.

1

87376493

STARTER MOTOR

JX80-JX90-JX95, Serial Range: -C6670

1шт.

84273182R

REMAN-STARTER,12V, 3.5kW

JX80, JX90, JX95, All TIER2 STARTER MOTOR Serial Range C6670 (1/06-), Reman for New P/N 87376493

1шт.

84273182C

CORE-STARTER,12V, 3.5kW

Return Number

1шт.

1

84273182

STARTER MOTOR,12V, 3.5kW

JX80-JX90-JX95, Start Serial: D6670

1шт.

84273182R

REMAN-STARTER,12V, 3.5kW

JX80, JX90, JX95, All TIER2 STARTER MOTOR Start Serial D6670 (1/06-)

1шт.

84273182C

CORE-STARTER,12V, 3.5kW

Return Number

1шт.

2

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

1шт.

3

5087007

GUARD

1шт.

4

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

5

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

3шт.

6

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.
