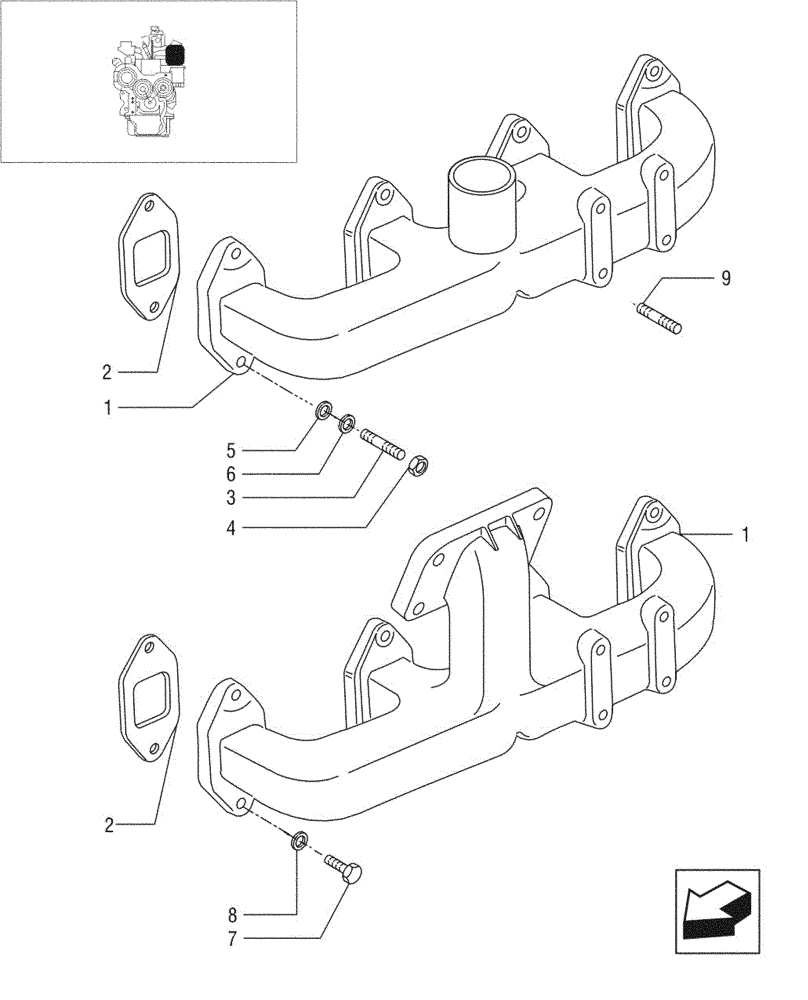

Запчасти Case IH JX95 (0.07.6/04[02]) - EXHAUST MANIFOLD - TIER 1 ENGINE (01) - ENGINE

1

99440113

EXHAUST MANIFOLD

1шт.

1

99440321

EXHAUST MANIFOLD

JX80

1шт.

2

98489690

GASKET,1.2mm Thk

4шт.

3

13517521

STUD

JX80

8шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

JX80

8шт.

5

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

JX80

8шт.

6

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

JX80

8шт.

7

98488122

BOLT,Flng, M8X1.25 x 40mm

M8 x 1.25 x 40

8шт.

8

98488128

WASHER

8шт.

9

13543721

STUD

M8 X 16 X 35

3шт.
