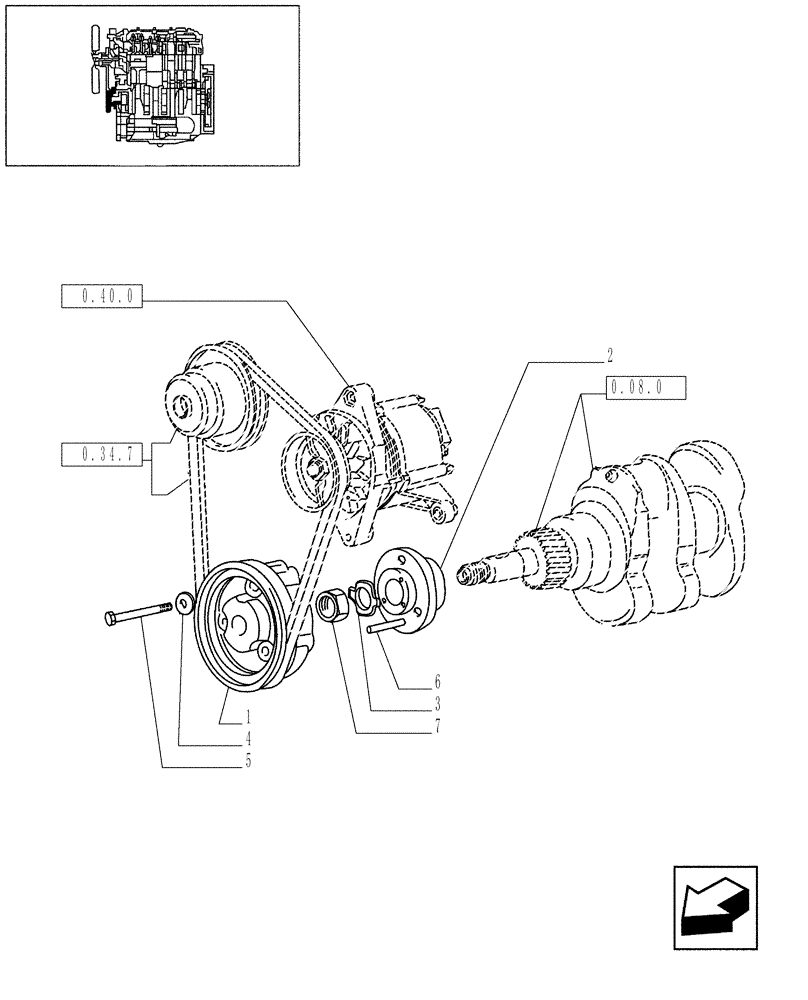

Запчасти Case IH JX95 (0.08.4/03) - VAR - 747, 391102 - TTF ENGINE TIER 2 - CRANKSHAFT PULLEY AND HUB (01) - ENGINE

1

4600187

PULLEY,163mm OD

JX80-JX90-JX95

1шт.

1

98490894

PULLEY,163mm OD

JX60-JX70

1шт.

2

4655845

HUB

1шт.

2

4655915

HUB

JX60-JX70

1шт.

3

4600190

LOCK WASHER

1шт.

4

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

3шт.

5

84203262

BOLT,M10 x 1.25 x 55mm

M10x1.25x55

1шт.

5

15888721

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

6

14165470

LOCK PIN,M5 x 10, Slotted

JX60-JX70

1шт.

7

4600189

NUT,Hex, M30, 1.5 Pitch, 18mm High

1шт.
