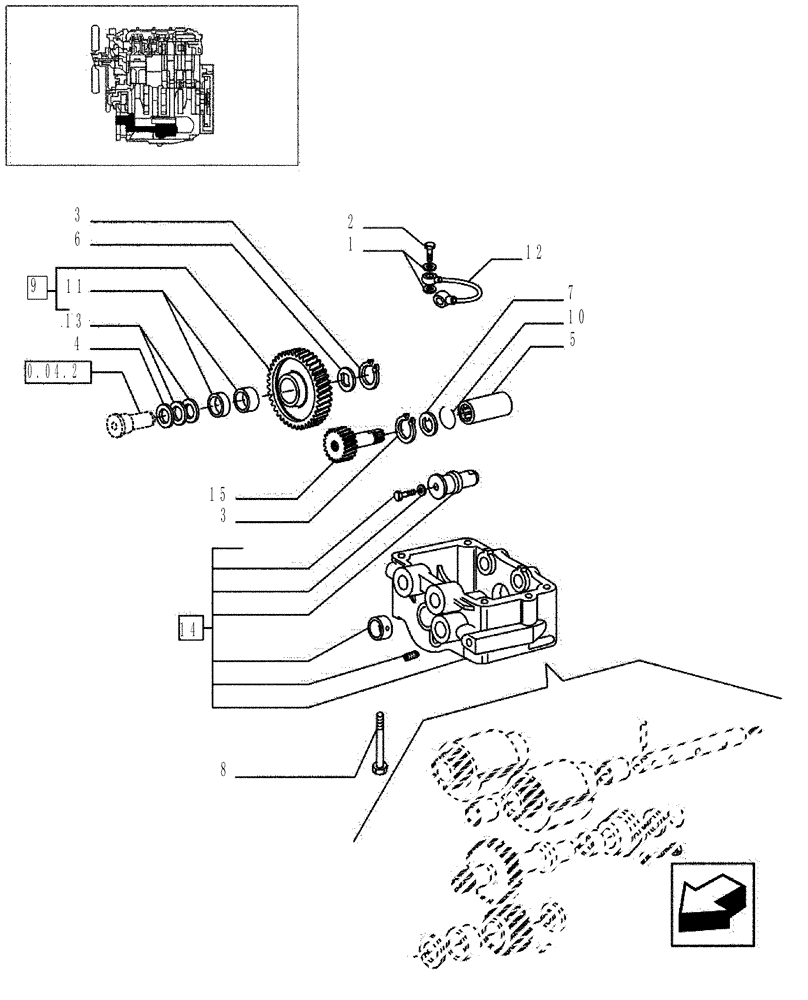

Запчасти Case IH JX95 (0.10.5/02[02]) - VAR - 747, 391102 - TTF ENGINE TIER 2 - BALANCER, GEARS & SHAFTS (01) - ENGINE

1

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

4шт.

2

11903811

BANJO BOLT

2шт.

3

4600329

SNAP RING,29.60mm ID

2шт.

4

4600386

WASHER,32.2mm ID x 50mm OD x 3mm Thk

1шт.

5

98415087

UNIVERSAL JOINT

1шт.

6

4667450

WASHER,32.2mm ID x 50mm OD x 3mm Thk

1шт.

7

4668200

THRUST WASHER

1шт.

8

4778867

BOLT,M12 x 1.25 x 114.50mm

M12x1.25x144.5

4шт.

9

4812932

GEAR

1шт.

10

98415095

LOCKING RING

1шт.

11

5088073

BUSHING

2шт.

12

4812938

RIGID TUBE

1шт.

13

4834331

WASHER

2шт.

14

500374916

BALANCER

1шт.

15

98418381

GEAR

1шт.
