(27.106.040) - STD + VAR - 335113, 390110 - DIFFERENTIAL LOCK, CONTROL, MECHANICAL

Запчасти Case IH JX95HC PLUS (27.106.040) - STD + VAR - 335113, 390110 - DIFFERENTIAL LOCK, CONTROL, MECHANICAL (27) - REAR AXLE SYSTEM

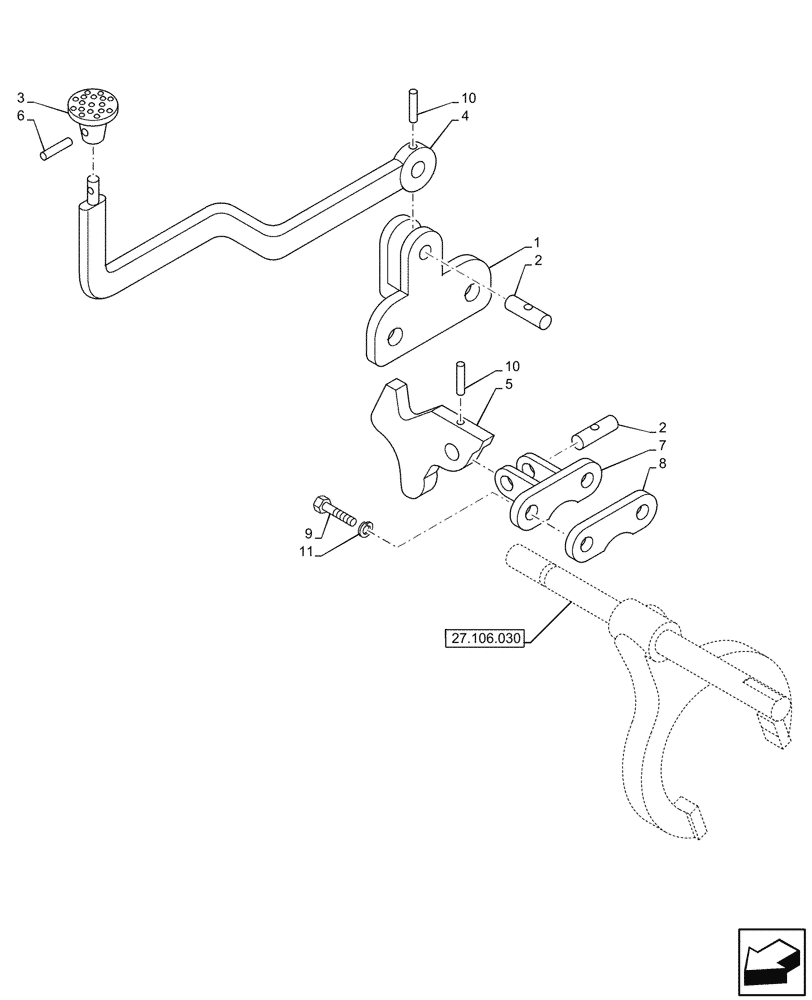

Схема запчастей Case IH JX95HC PLUS - (27.106.040) - STD + VAR - 335113, 390110 - DIFFERENTIAL LOCK, CONTROL, MECHANICAL (27) - REAR AXLE SYSTEM
5
6
9
3
2
2
4
11
1
10
10
7
8
27.106.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089683

SUPPORT

1шт.

2

567360

PIN,10mm OD x 33mm L

2шт.

3

87395998

RUBBER PAD

1шт.

4

5089681

ARM

1шт.

5

5089682

SPACER

1шт.

6

13904570

ROLL PIN,M4 x 18, Coiled

1шт.

7

5085538

SUPPORT

1шт.

8

5114582

SHIM,25mm OD x 0.5mm Thk

6шт.

9

10923221

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

13900070

ROLL PIN,M3 x 26, Coiled

2шт.

11

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.
