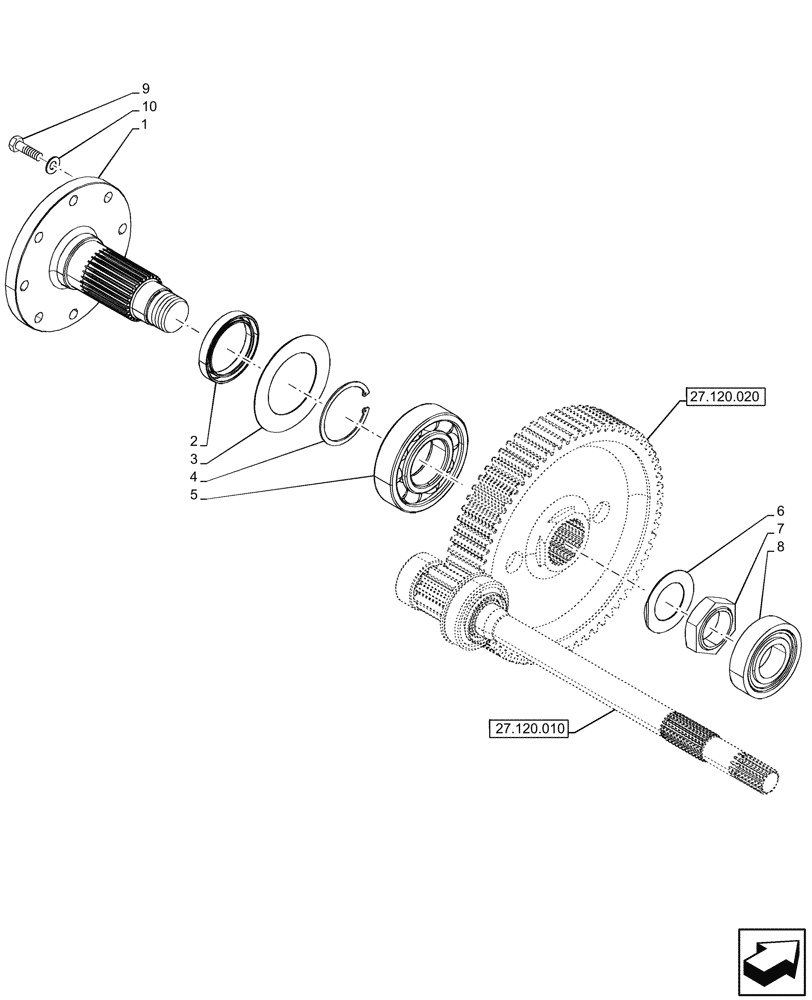

Запчасти Case IH JX95HC PLUS (27.120.030) - STD + VAR - 335113, 390110 - FINAL DRIVE, HUB (27) - REAR AXLE SYSTEM

1

5089368

SHAFT

L=235mm, Z26

2шт.

2

5131916

SEAL,85mm ID x 110mm OD x 16mm Thk

2шт.

3

5109810

WASHER, THRUST,100mm ID x 146mm OD x 1.5mm Thk

2шт.

4

11075476

SNAP RING,M110, Int

2шт.

5

26794770

BALL BEARING,70mm ID x 150mm OD x 35mm W

2шт.

6

5109858

WASHER,61mm ID x 100mm OD x 1.5mm Thk

2шт.

7

5089369

NUT

2шт.

8

20065730

BALL BEARING,55mm ID x 120mm OD x 29mm W

2шт.

9

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

10

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.
