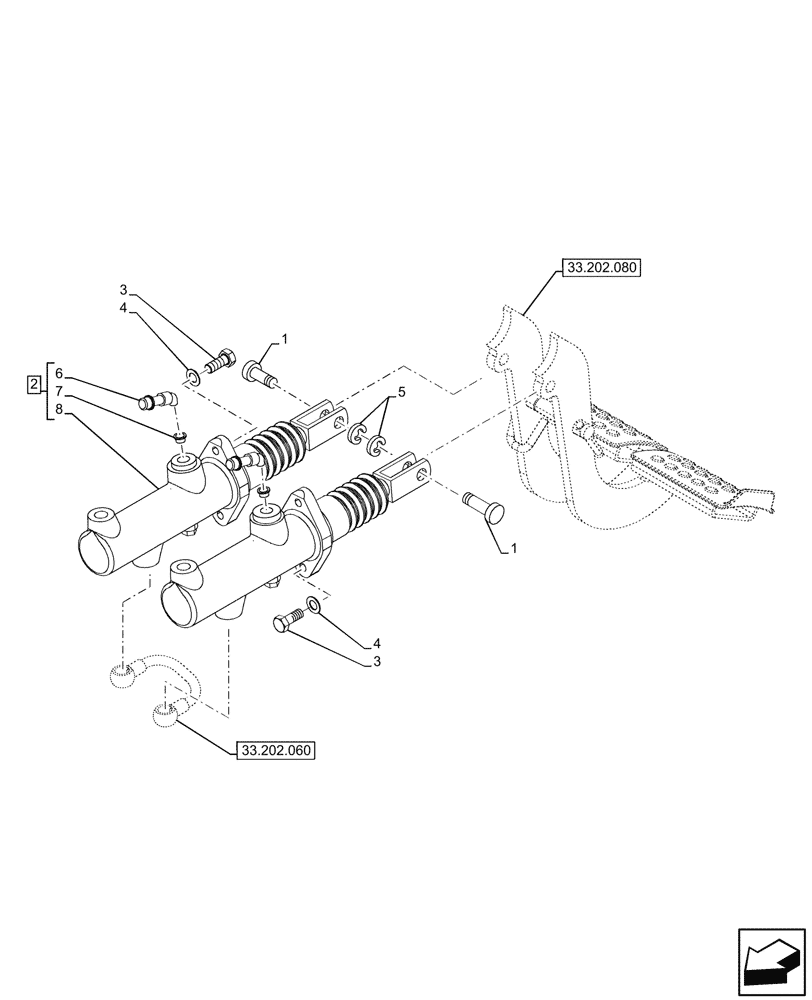

Запчасти Case IH JX95HC PLUS (33.202.050) - STD + VAR - 391606 - BRAKE, MASTER CYLINDER (33) - BRAKES & CONTROLS

1

5111590

PIN,10mm OD x 28mm L

2шт.

2

87354681

MASTER CYLINDER,38.3mm Stroke

ASSY, Incl 6 - 8

2шт.

3

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

5

11064174

CLIP

2шт.

6

47844294

ELBOW,Incl. Seal

2шт.

7

NSS

NOT SOLD SEPARAT

Gasket, Incl in 2

2шт.

8

NSS

NOT SOLD SEPARAT

Master Cylinde, Incl in 2

2шт.
