(35.114.050) - STD + VAR - 335054, 335103, 335413, 335417 - HYDRAULIC LIFT, REAR, CONTROL VALVE, PRESSURE PIPE

Запчасти Case IH JX95HC PLUS (35.114.050) - STD + VAR - 335054, 335103, 335413, 335417 - HYDRAULIC LIFT, REAR, CONTROL VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

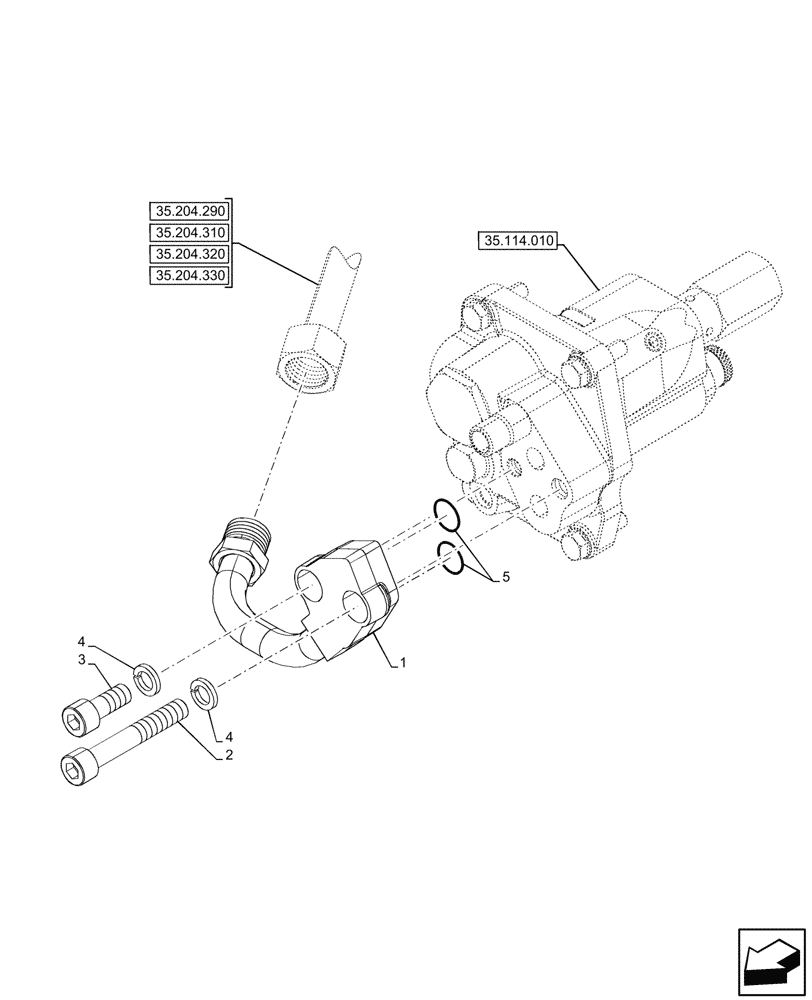

Схема запчастей Case IH JX95HC PLUS - (35.114.050) - STD + VAR - 335054, 335103, 335413, 335417 - HYDRAULIC LIFT, REAR, CONTROL VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS
35.114.010
5
35.204.330
35.204.290
4
4
2
1
35.204.310
3
35.204.320
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47775556

PRESSURE PIPE

1шт.

2

14308221

HEX SOC SCREW,M10 x 1.25 x 65mm, Cl 8.8

1шт.

3

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

1шт.

4

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

2шт.

5

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.
