(35.204.070) - VAR - 335417 - REMOTE CONTROL VALVE, REAR, HOSE

Запчасти Case IH JX95HC PLUS (35.204.070) - VAR - 335417 - REMOTE CONTROL VALVE, REAR, HOSE (35) - HYDRAULIC SYSTEMS

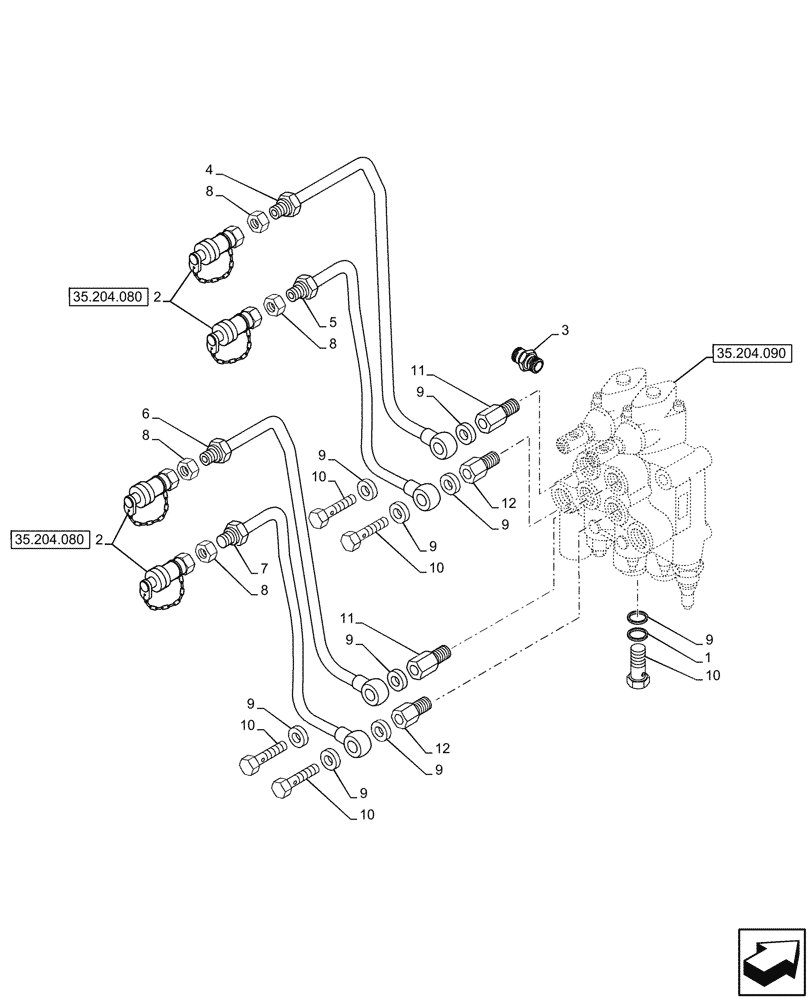

Схема запчастей Case IH JX95HC PLUS - (35.204.070) - VAR - 335417 - REMOTE CONTROL VALVE, REAR, HOSE (35) - HYDRAULIC SYSTEMS
10
12
6
9
12
11
1
8
4
10
11
2
9
35.204.080
8
8
10
9
9
9
5
7
35.204.080
9
8
35.204.090
3
2
9
10
9
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

2

5093853

COUPLING, QUICK, FEM,Black

Black, ASSY

4шт.

3

5087002

HYD CONNECTOR

1шт.

4

5092065

TUBE

Quick Coupling, First, L=449mm

1шт.

5

5092067

TUBE

Quick Coupling, Second, L=415mm

1шт.

6

5094320

TUBE

Quick Coupling, Third, L=419mm

1шт.

7

5094324

TUBE

Quick Coupling, Fouth, L=364.5mm

1шт.

8

5129168

BHD LOCK NUT,M24 x 1.5

4шт.

9

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

18шт.

10

5100984

BANJO BOLT,M18 x 1.5, 34mm L

7шт.

11

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

2шт.

12

5092079

SPACER,M18 x 1.5 NPT x M18 x 1.5

2шт.
