(35.204.210) - VAR - 335103 - REMOTE CONTROL VALVE, REAR, 3 REMOTE CONTROL VALVES (2 S/D W/ KICK OUT AND FLOAT + 1 S/D W/ KICK OUT), COMPONENTS

Запчасти Case IH JX95HC PLUS (35.204.210) - VAR - 335103 - REMOTE CONTROL VALVE, REAR, 3 REMOTE CONTROL VALVES (2 S/D W/ KICK OUT AND FLOAT + 1 S/D W/ KICK OUT), COMPONENTS (35) - HYDRAULIC SYSTEMS

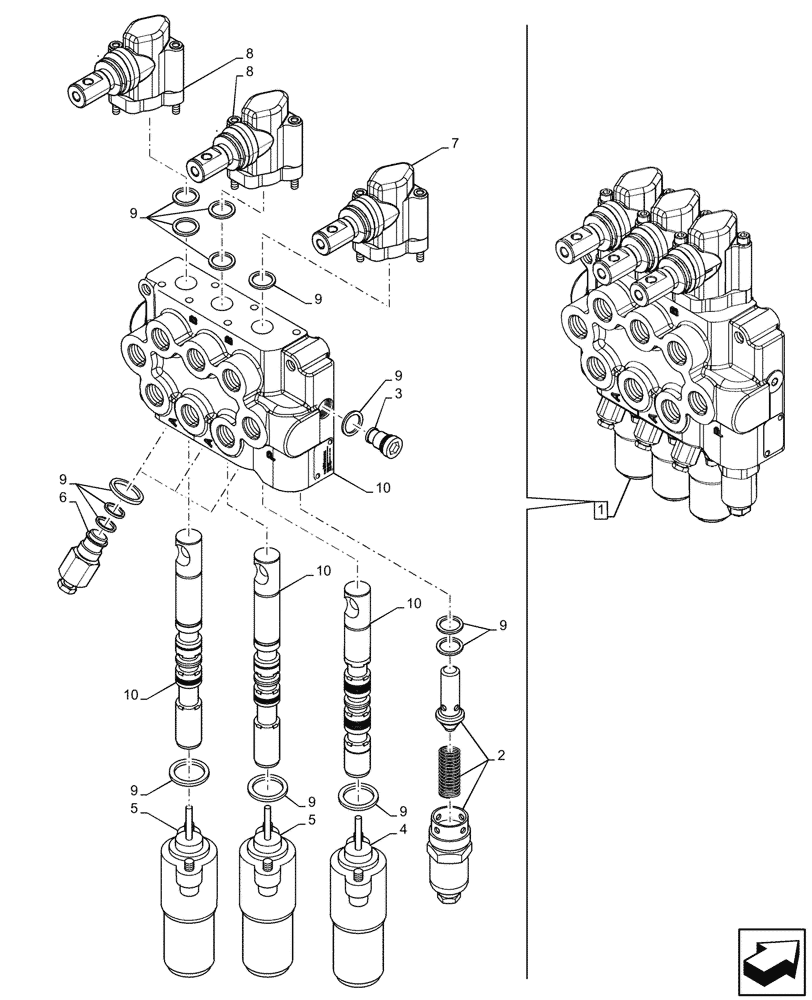

Схема запчастей Case IH JX95HC PLUS - (35.204.210) - VAR - 335103 - REMOTE CONTROL VALVE, REAR, 3 REMOTE CONTROL VALVES (2 S/D W/ KICK OUT AND FLOAT + 1 S/D W/ KICK OUT), COMPONENTS (35) - HYDRAULIC SYSTEMS
9
10
8
5
9
10
9
4
10
9
9
3
7
9
6
9
5
1
10
2
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84235970

CONTROL VALVE

ASSY, Incl 2 - 10

1шт.

2

5083046

VALVE PRESSURE RELIE

1шт.

3

5083047

CHECK VALVE

1шт.

4

5083053

ACTUATOR

1шт.

5

84286924

ACTUATOR

2шт.

6

5083049

VALVE

3шт.

7

84286957

CONTROL

1шт.

8

84286923

CONTROL

2шт.

9

84287238

SEAL KIT

1шт.

10

NSS

NOT SOLD SEPARAT

Valve Housing and Spool Kit, Incl in 1

1шт.

Выбрано товаров: 10
