(35.204.260) - STD + VAR - 335413, 335417 - REMOTE CONTROL VALVE, REAR, CONTROL LEVER (1 S/D + 1 DOUBLE ACTING WITH FLOAT & KICK OUT)

Запчасти Case IH JX95HC PLUS (35.204.260) - STD + VAR - 335413, 335417 - REMOTE CONTROL VALVE, REAR, CONTROL LEVER (1 S/D + 1 DOUBLE ACTING WITH FLOAT & KICK OUT) (35) - HYDRAULIC SYSTEMS

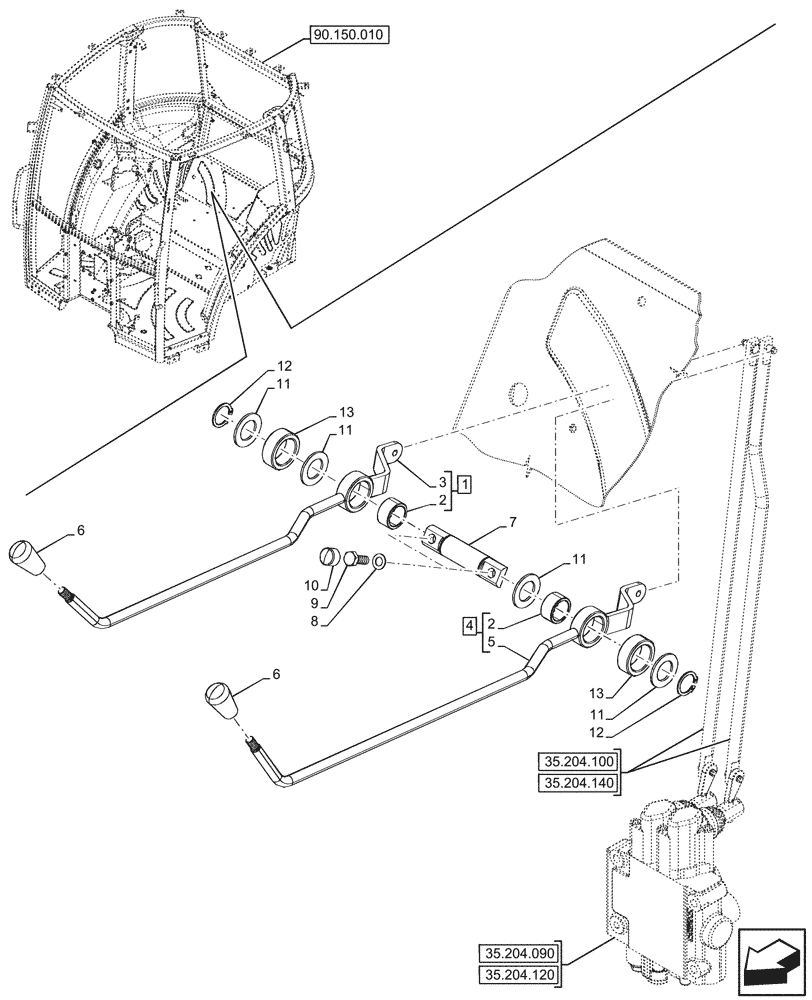

Схема запчастей Case IH JX95HC PLUS - (35.204.260) - STD + VAR - 335413, 335417 - REMOTE CONTROL VALVE, REAR, CONTROL LEVER (1 S/D + 1 DOUBLE ACTING WITH FLOAT & KICK OUT) (35) - HYDRAULIC SYSTEMS
11
11
4
6
9
35.204.100
7
12
35.204.120
8
6
35.204.140
5
12
11
13
90.150.010
10
3
1
11
13
2
35.204.090
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87391114

LEVER

Valve 1-2, Comand Lever, ASSY, Incl 2 (Qty 1), 3

1шт.

2

87391126

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

4

87391516

LEVER

Valve 3-4, Comand Lever, ASSY, Incl 2 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Lever, Incl in 4

1шт.

6

561880

HANDLE GRIP

1шт.

7

5133375

PIN,20mm OD x 100mm L

1шт.

8

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

9

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

10

5089481

CAP,17mm OD

2шт.

11

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

5шт.

12

11066976

SNAP RING,M21, Ext

2шт.

13

87612661

BUSHING,21mm ID x 38mm OD x 10mm L

2шт.
