(35.204.280) - VAR - 335054, 335103 - REMOTE CONTROL VALVE, REAR, CONTROL LEVER (2 S/D + 1 DOUBLE ACTING WITH FLOAT & KICK OUT)

Запчасти Case IH JX95HC PLUS (35.204.280) - VAR - 335054, 335103 - REMOTE CONTROL VALVE, REAR, CONTROL LEVER (2 S/D + 1 DOUBLE ACTING WITH FLOAT & KICK OUT) (35) - HYDRAULIC SYSTEMS

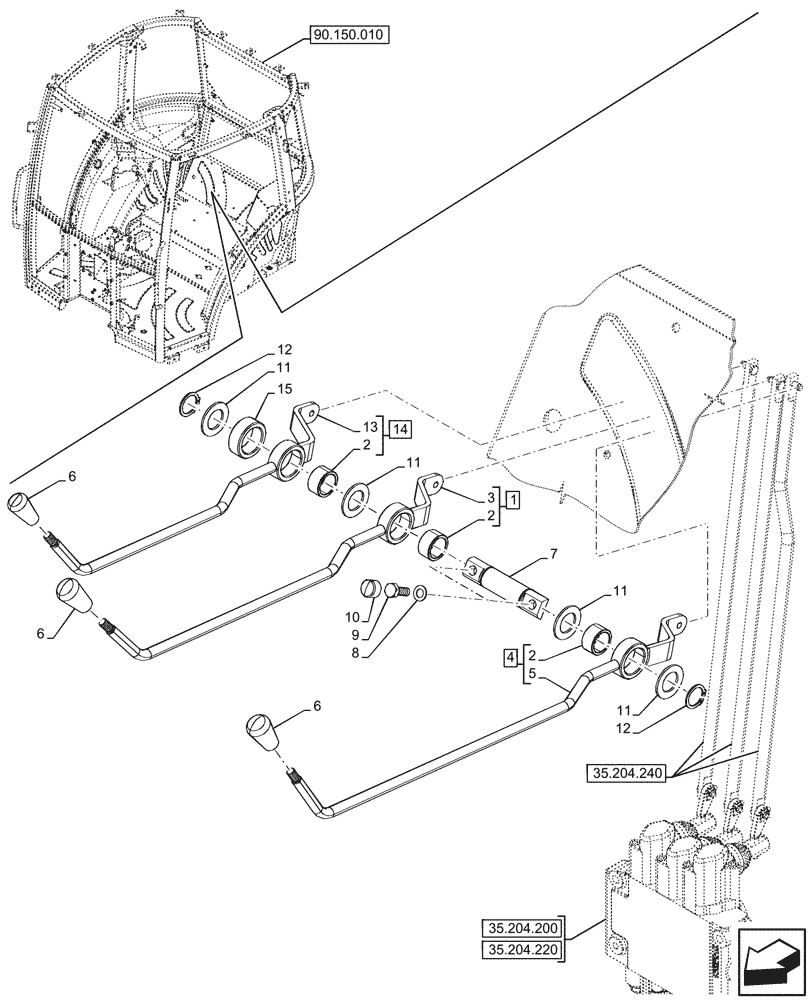

Схема запчастей Case IH JX95HC PLUS - (35.204.280) - VAR - 335054, 335103 - REMOTE CONTROL VALVE, REAR, CONTROL LEVER (2 S/D + 1 DOUBLE ACTING WITH FLOAT & KICK OUT) (35) - HYDRAULIC SYSTEMS
6
4
8
6
11
10
7
11
2
14
12
12
11
5
1
35.204.200
3
35.204.220
2
6
15
9
2
90.150.010
11
35.204.240
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87391114

LEVER

Valve 1-2, Comand Lever, ASSY, Incl 2 (Qty 1), 3

1шт.

2

87391126

BUSHING

3шт.

3

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

4

87391516

LEVER

Valve 3-4, Comand Lever, ASSY, Incl 2 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Lever, Incl in 4

1шт.

6

561880

HANDLE GRIP

Brown

3шт.

7

5133375

PIN,20mm OD x 100mm L

1шт.

8

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

9

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

10

5089481

CAP,17mm OD

2шт.

11

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

5шт.

12

11066976

SNAP RING,M21, Ext

2шт.

13

87391520

LEVER

Valve 5-6, Comand Lever, ASSY, Incl 2 (Qty 1), 14

1шт.

14

NSS

NOT SOLD SEPARAT

Lever, Incl in 13

1шт.

15

87612661

BUSHING,21mm ID x 38mm OD x 10mm L

1шт.
