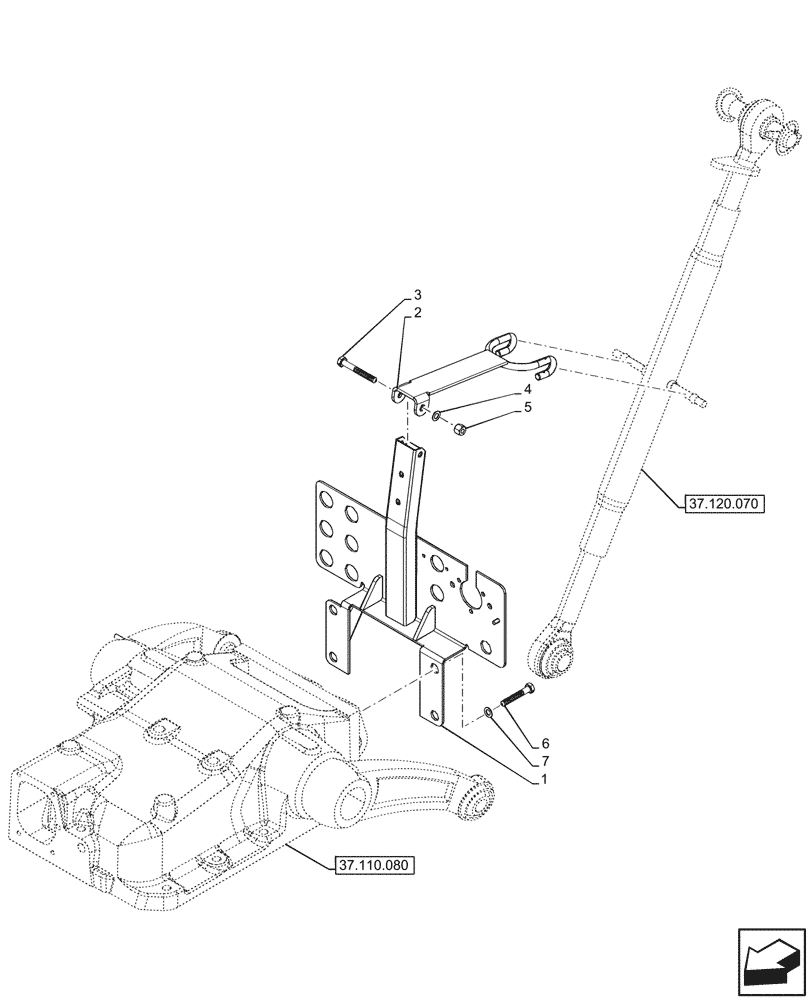

Запчасти Case IH JX95HC PLUS (37.120.020) - STD + VAR - 334421, 334424, 335905 - 3 POINT HITCH, TOP LINK, SUPPORT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47571566

SUPPORT

1шт.

2

5092607

SUPPORT

1шт.

3

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

1шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

5

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

6

15981821

SCREW,Hex, M16 x 1.5 x 120mm, Cl 8.8

4шт.

7

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.
