(39.140.020) - VAR - 330470 - BALLAST, REAR (300KG)

Запчасти Case IH JX95HC PLUS (39.140.020) - VAR - 330470 - BALLAST, REAR (300KG) (39) - FRAMES AND BALLASTING

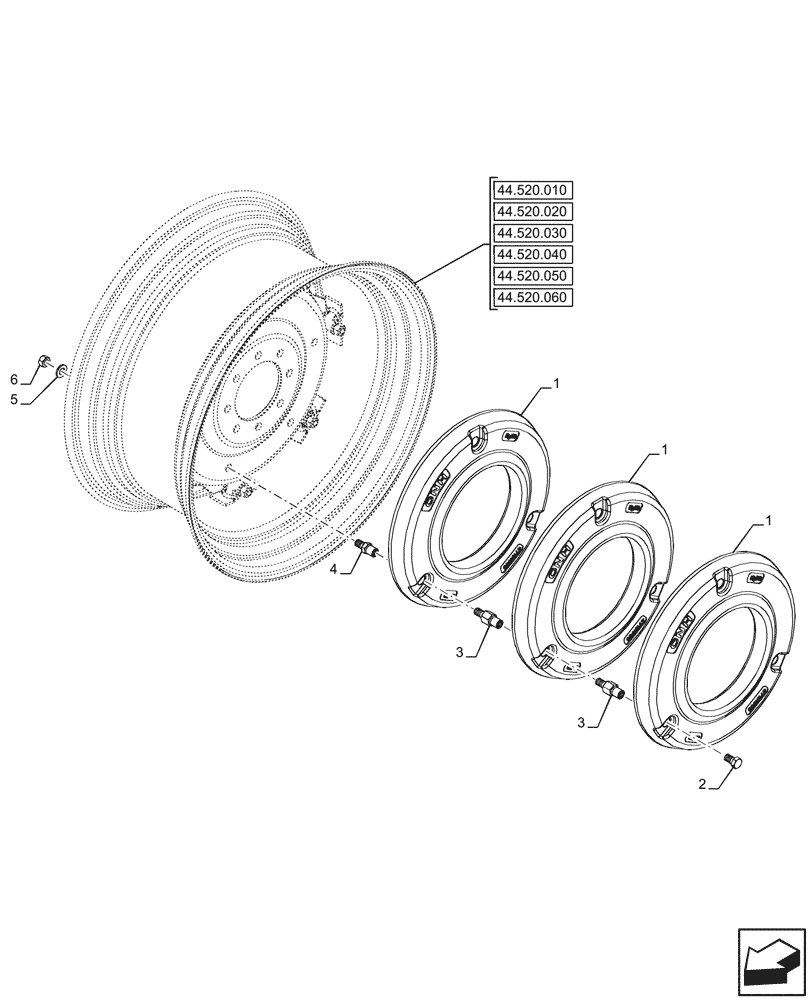

Схема запчастей Case IH JX95HC PLUS - (39.140.020) - VAR - 330470 - BALLAST, REAR (300KG) (39) - FRAMES AND BALLASTING
3
6
44.520.010
44.520.060
3
5
44.520.030
1
44.520.050
44.520.040
2
4
44.520.020
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5093512

WHEEL WEIGHT,50Kg/110Lb

100KG

6шт.

2

15980521

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

3

44018046

SCREW,M16 x 1.5 x 60mm

6шт.

4

44018047

SCREW,M16 x 1.5 x 78mm

12шт.

5

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

6

12164111

NUT,M16, Cl 8

6шт.
