(39.140.060) - VAR - 335933 - FRONT WEIGHT CARRIER, WEIGHTS (9X45KG), W/ HOOK (493KG)

Запчасти Case IH JX95HC PLUS (39.140.060) - VAR - 335933 - FRONT WEIGHT CARRIER, WEIGHTS (9X45KG), W/ HOOK (493KG) (39) - FRAMES AND BALLASTING

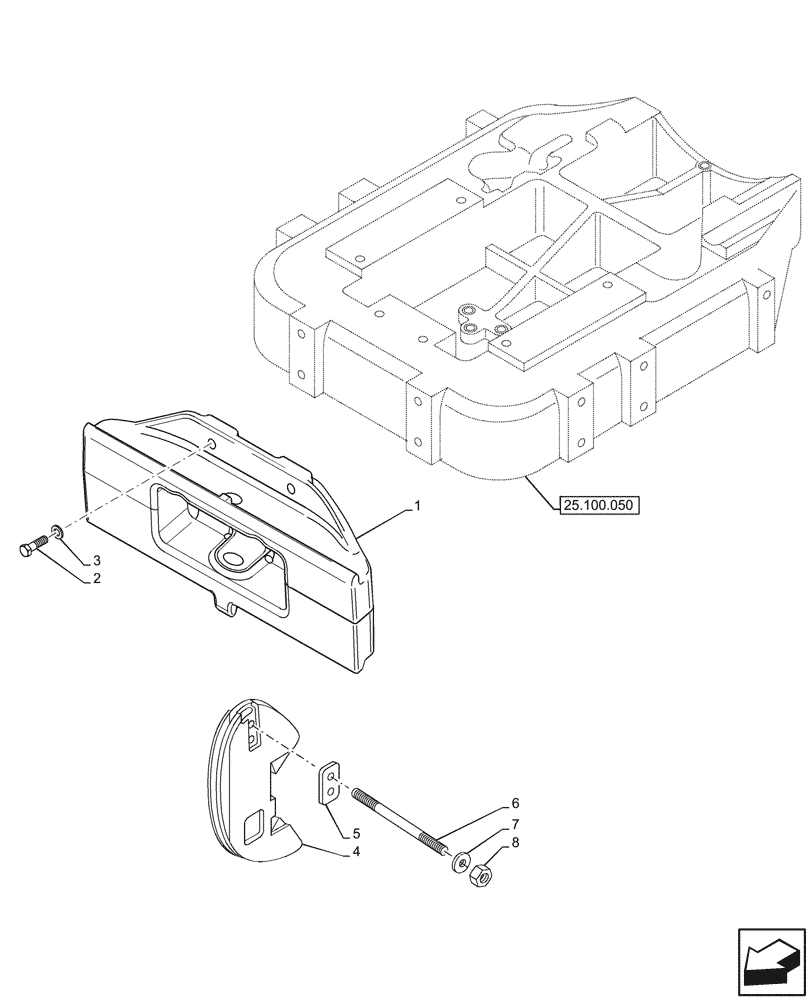

Схема запчастей Case IH JX95HC PLUS - (39.140.060) - VAR - 335933 - FRONT WEIGHT CARRIER, WEIGHTS (9X45KG), W/ HOOK (493KG) (39) - FRAMES AND BALLASTING
4
25.100.050
6
2
7
5
8
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84558684

WEIGHT CARRIER

Front Ballast

1шт.

2

15981221

SCREW,Hex, M16 x 1.5 x 65mm, Cl 8.8

4шт.

3

11191579

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

4шт.

4

5091956

WEIGHT

45 Kg

9шт.

5

5092098

PLATE

Locking

2шт.

6

5092101

THREADED ROD

2шт.

7

5092100

SPACER,17.5mm ID x 34mm OD x 5mm L

4шт.

8

12164111

NUT,M16, Cl 8

4шт.
