(41.216.010) - STD + VAR - 391244 - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE

Запчасти Case IH JX95HC PLUS (41.216.010) - STD + VAR - 391244 - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE (41) - STEERING

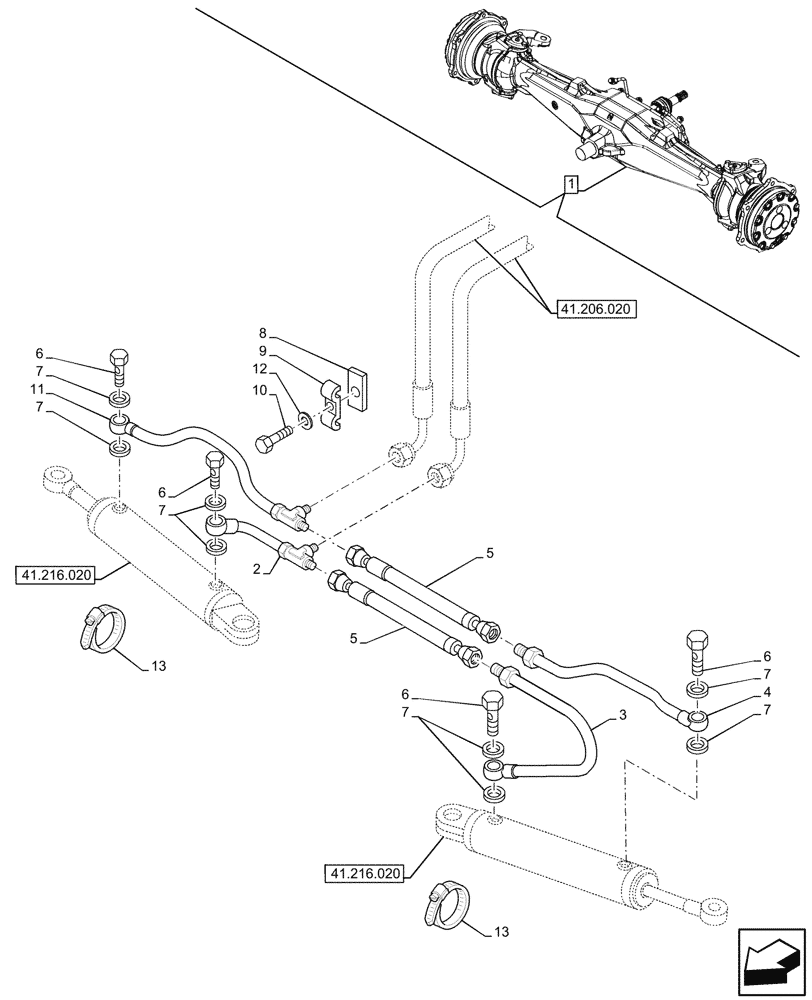

Схема запчастей Case IH JX95HC PLUS - (41.216.010) - STD + VAR - 391244 - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE (41) - STEERING
2
7
7
5
10
41.216.020
7
6
11
41.216.020
13
9
6
6
8
1
7
12
6
7
41.206.020
4
7
13
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 13

1шт.

2

5163740

TUBE

Steering Cylinder, LH

1шт.

3

5163738

HYD TUBE

Steering Cylinder, LH

1шт.

4

5139046

HYD TUBE

Steering Cylinder, LH

1шт.

5

5145419

HOSE,8mm ID x 540mm L, SAE 100R2

2шт.

6

10184311

BANJO BOLT,M14 x 1.5 x 27mm

4шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

8шт.

8

5138294

SUPPORT

2шт.

9

4999554

CLAMP,2 Hoses

2шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

5139049

HYD TUBE

Steering Cylinder, RH

1шт.

12

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

13

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

2шт.
