(50.200.020) - VAR - 391102 - AIR CONDITIONING, COMPRESSOR, COMPONENTS

Запчасти Case IH JX95HC PLUS (50.200.020) - VAR - 391102 - AIR CONDITIONING, COMPRESSOR, COMPONENTS (50) - CAB CLIMATE CONTROL

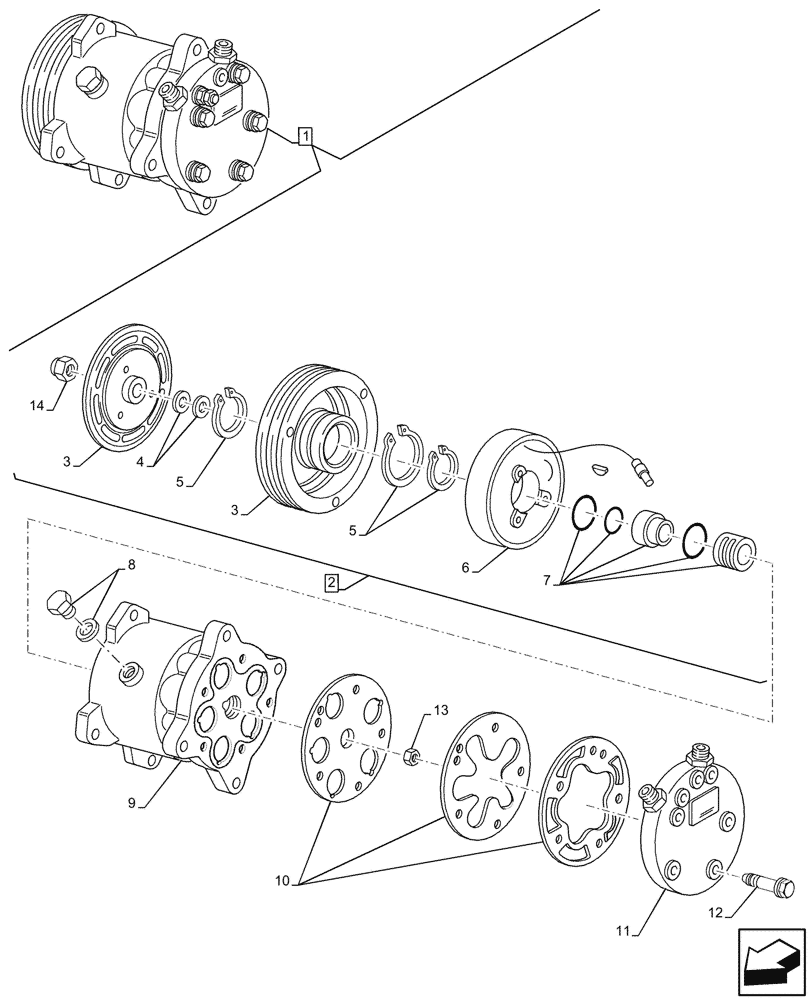

Схема запчастей Case IH JX95HC PLUS - (50.200.020) - VAR - 391102 - AIR CONDITIONING, COMPRESSOR, COMPONENTS (50) - CAB CLIMATE CONTROL
9
14
10
13
4
7
3
12
6
5
11
8
3
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84316006

AIRCOND. COMPRESSOR

ASSY, Incl 2 - 14

1шт.

2

87347577

KIT

Clutch Assembly with Accessory Kit, ASSY, Incl 3 - 7

1шт.

3

87347582

CLUTCH

1шт.

4

87347585

CIRCLIP

2шт.

5

87347584

SHAFT SEAL

3шт.

6

NSS

NOT SOLD SEPARAT

Coil, Incl in 2

1шт.

7

87347578

KIT

Accessory Kit

1шт.

8

87347591

PLUG

Oil Plug with O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

10

87347589

KIT

Valve Plate ASSY with Gasket

1шт.

11

87347587

KIT

Cylinder Head with Gasket

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

6шт.

13

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Cap Nut, Incl in 1

1шт.
