(55.510.030) - STD + VAR - 391606 - PLATFORM, WIRE HARNESS

Запчасти Case IH JX95HC PLUS (55.510.030) - STD + VAR - 391606 - PLATFORM, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

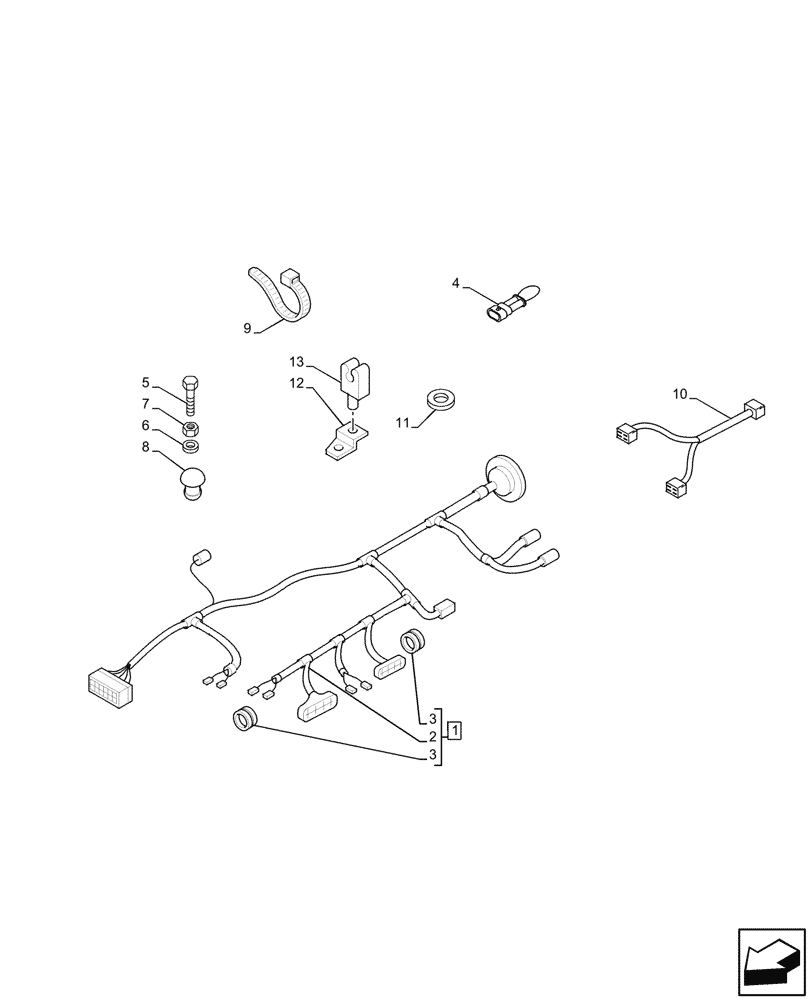

Схема запчастей Case IH JX95HC PLUS - (55.510.030) - STD + VAR - 391606 - PLATFORM, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
11
6
1
3
2
5
7
10
9
4
8
13
3
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84489812

WIRE HARNESS

Platform, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Platform Wire Harness, Incl in 1

1шт.

3

10397280

INSULATING RING

2шт.

4

84261590

ELEC CONNECTOR

1шт.

5

10390211

SCREW,Sl Pan Hd, M5 x 35mm, Cl 5.8

3шт.

6

12601174

WAVE WASHER,Wave, M4.3

3шт.

7

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

8

5093850

PLUG,9mm OD

2шт.

9

5112712

COLLAR,M4.8 x 283

10шт.

10

47365084

CABLE

Ground Speed PTO Connection

1шт.

11

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.
