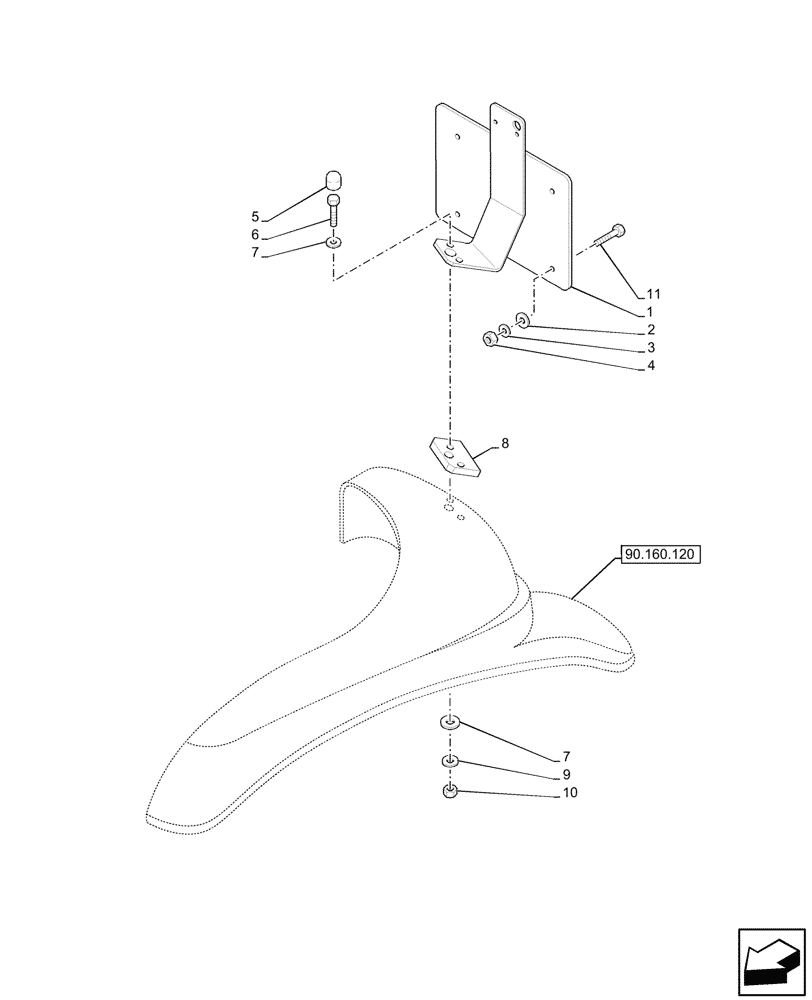

Запчасти Case IH JX95HC PLUS (88.100.030) - STD + VAR - 391606 - LICENSE PLATE HOLDER, SUPPORT (88) - ACCESSORIES

1

5094437

SUPPORT

1шт.

2

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

M4

4шт.

3

12601074

WAVE WASHER,4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

4шт.

4

10794011

NUT,M4, Cl 8

M4, Cl 8

4шт.

5

5089481

CAP,17mm OD

2шт.

6

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Hex, M8 x 1.25 x 25mm, CL 8.8, Full Thd

2шт.

7

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

M8 x 17 x 2

4шт.

8

5089433

PAD

1шт.

9

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

Hex, M8, 6.80mm, CL 8, ZND

2шт.

11

10375011

SCREW,Sl Pan Hd, M4 x 14mm

SI pan Hd, M4 x 14mm

4шт.
