(90.100.060) - STD + VAR - 391606 - HOOD, SUPPORT

Запчасти Case IH JX95HC PLUS (90.100.060) - STD + VAR - 391606 - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

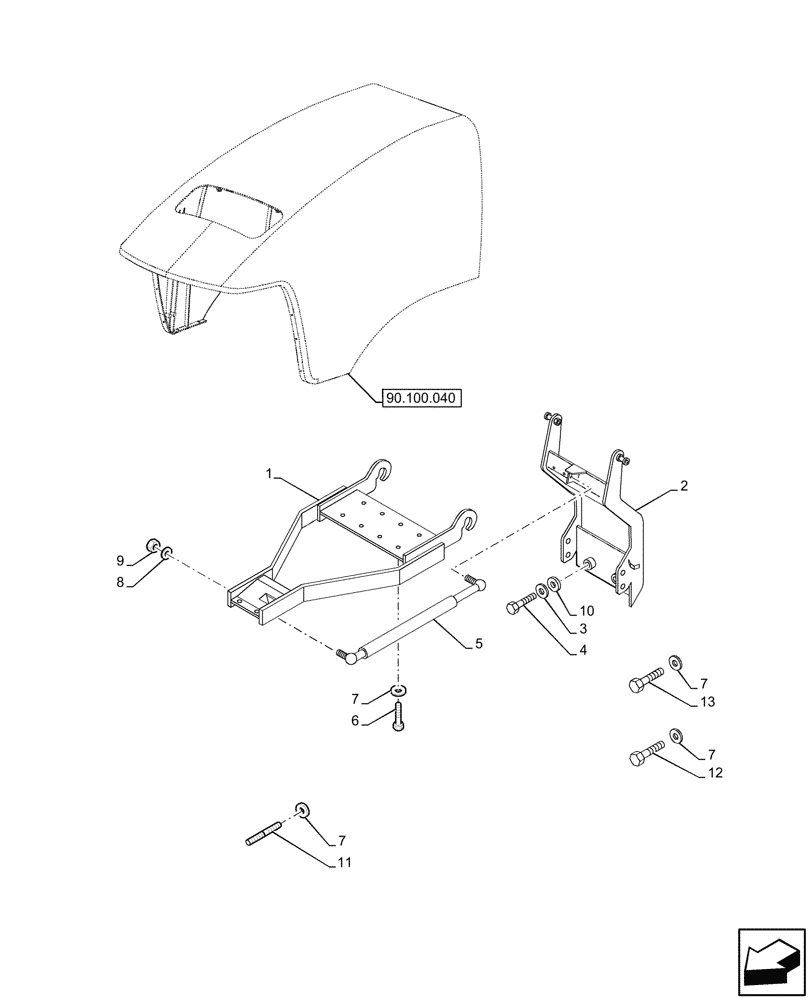

Схема запчастей Case IH JX95HC PLUS - (90.100.060) - STD + VAR - 391606 - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
90.100.040
7
1
10
2
3
7
8
7
13
4
11
6
9
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5093825

SUPPORT

Black

1шт.

2

87394837

SUPPORT

1шт.

3

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

3шт.

4

11098621

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

2шт.

5

87480239

GAS STRUT

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

15шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

20шт.

8

12601074

WAVE WASHER,4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

4шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

10

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

11

13543621

STUD,M8 x 16 x 30mm

1шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

13

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
