(90.120.050) - STD + VAR - 391241 - DRIVER SEAT, W/ ARMREST, W/O SEAT BELT, COMPONENTS

Запчасти Case IH JX95HC PLUS (90.120.050) - STD + VAR - 391241 - DRIVER SEAT, W/ ARMREST, W/O SEAT BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

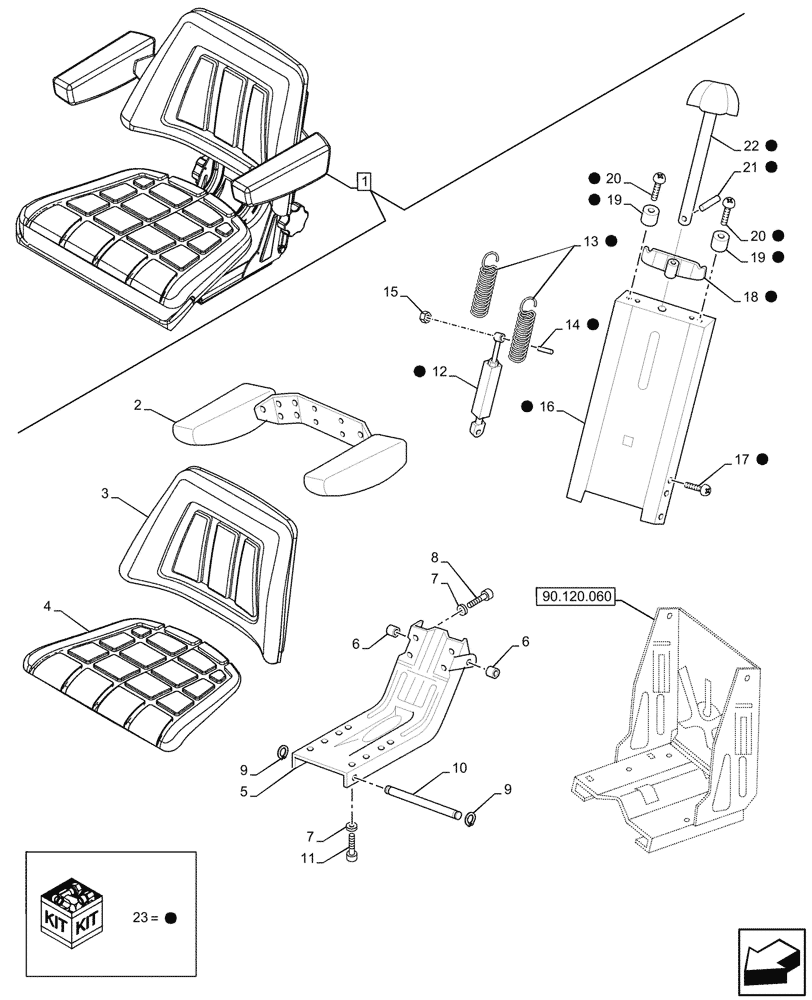

Схема запчастей Case IH JX95HC PLUS - (90.120.050) - STD + VAR - 391241 - DRIVER SEAT, W/ ARMREST, W/O SEAT BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
23
9
4
7
23
9
13
23
3
10
23
23
23
23
1
14
23
21
22
7
15
17
2
23
8
6
20
11
90.120.060
12
23
20
23
19
16
23
6
18
23
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87391066

DRIVER SEAT

w/o Seat Belt, ASSY, Incl 2 - 23

1шт.

See Driver seat Components also in Figure 90.120.060

1шт.

2

5080311

ARMREST

1шт.

3

5080428

BACKREST

1шт.

4

5080430

CUSHION

1шт.

5

5080310

FRAME

1шт.

6

5080309

ROLLER

2шт.

7

5080248

SPRING WASHER

7шт.

8

5080294

BOLT

3шт.

9

5080289

RING

2шт.

10

5080308

ROD

1шт.

11

5080274

BOLT

4шт.

12

5080307

GAS STRUT

1шт.

13

5080306

SPRING

2шт.

14

15210521

SCREW

1шт.

15

12574021

NUT,M4 x .7, Cl 10

1шт.

16

5080764

FRAME

1шт.

17

5080299

BOLT

2шт.

18

5080301

RETAINER

1шт.

19

5080302

SPACER

2шт.

20

5080303

BOLT

2шт.

21

5080204

PIN

1шт.

22

5080304

ADJUSTMENT SCREW,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

23

5083207

KIT

ASSY, Incl 12 - 22

1шт.
