(90.120.120) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS

Запчасти Case IH JX95HC PLUS (90.120.120) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

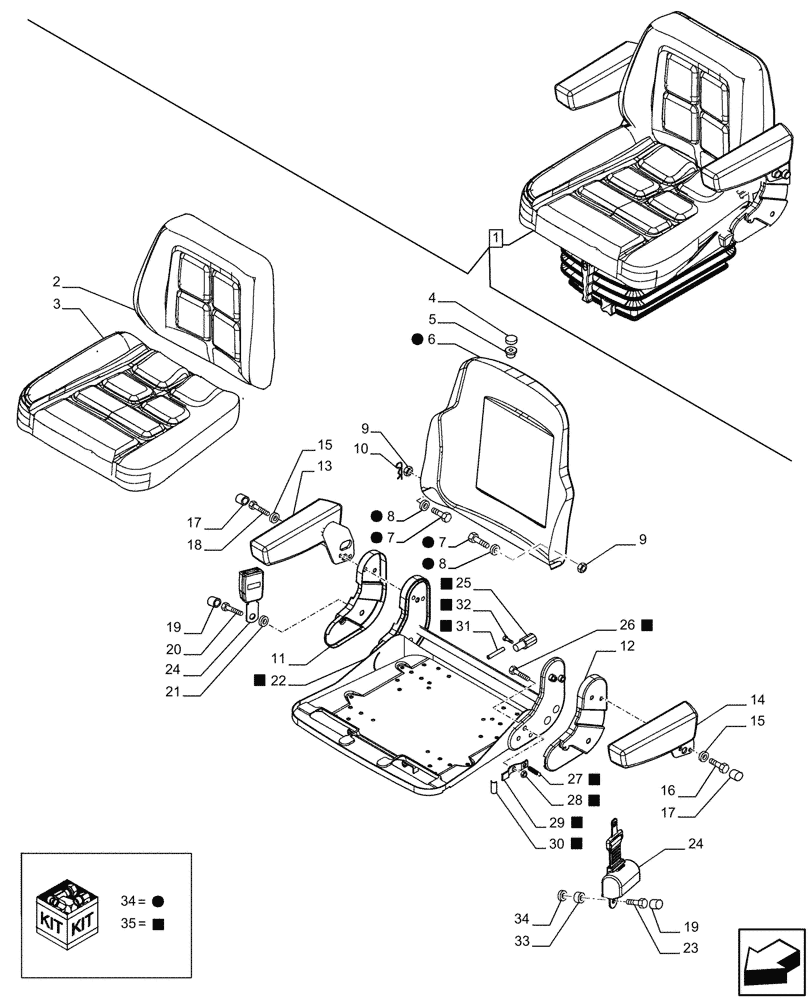

Схема запчастей Case IH JX95HC PLUS - (90.120.120) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
36
36
35
35
36
10
24
28
23
31
21
5
11
1
15
8
20
33
18
35
36
36
2
24
36
17
6
34
36
9
15
4
35
19
30
12
8
3
36
34
9
16
14
35
22
36
26
17
29
27
32
35
25
13
7
7
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091998

DRIVER SEAT

Fabric, Deluxe, w/ Retractable Seat Belt, ASSY, Incl 2 - 36

1шт.

See Deluxe Driver Seat Components also in Figures 90.120.130, 90.120.140

1шт.

2

84264813

SEAT BACK

1шт.

3

84264814

SEAT CUSHION

1шт.

4

5081317

PLUG

2шт.

5

5081316

PLUG

2шт.

6

5080263

PLATE

1шт.

7

5080262

BOLT

2шт.

8

5080902

WASHER

2шт.

9

5081315

NUT

2шт.

10

5080259

SPRING

Backrest Tensioning

1шт.

11

5080267

COVER

RH

1шт.

12

5080268

COVER

LH

1шт.

13

5080272

ARMREST

RH

1шт.

14

5080273

ARMREST

LH

1шт.

15

5080248

SPRING WASHER

4шт.

16

84412920

SCREW

3шт.

17

5080497

PLUG

4шт.

18

84424280

BOLT

1шт.

19

5080271

COVER,17.5mm ID

2шт.

20

5080270

SCREW,7/16 UNF x 25mm

2шт.

21

5080292

WASHER

1шт.

22

5080277

PLATE

1шт.

23

84361158

SCREW,7/16 UNF x 30mm

1шт.

24

84359360

SEAT BELT

1шт.

25

5080251

GEAR

1шт.

26

5080255

BOLT

1шт.

27

5080257

SPRING

1шт.

28

5080256

NUT

1шт.

29

5080254

LEVER

1шт.

30

5080258

KNOB

1шт.

31

5080252

PIN

1шт.

32

5080253

PIN

1шт.

33

84361166

BUSHING,20mm OD x 12mm ID x 7.5mm L

1шт.

34

5080290

WASHER

1шт.

35

5083205

SEAT BACK

ASSY, Incl 6 - 8

1шт.

36

5080362

REPAIR KIT

ASSY, Incl 22, 25 - 32

1шт.
