(90.120.130) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS

Запчасти Case IH JX95HC PLUS (90.120.130) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

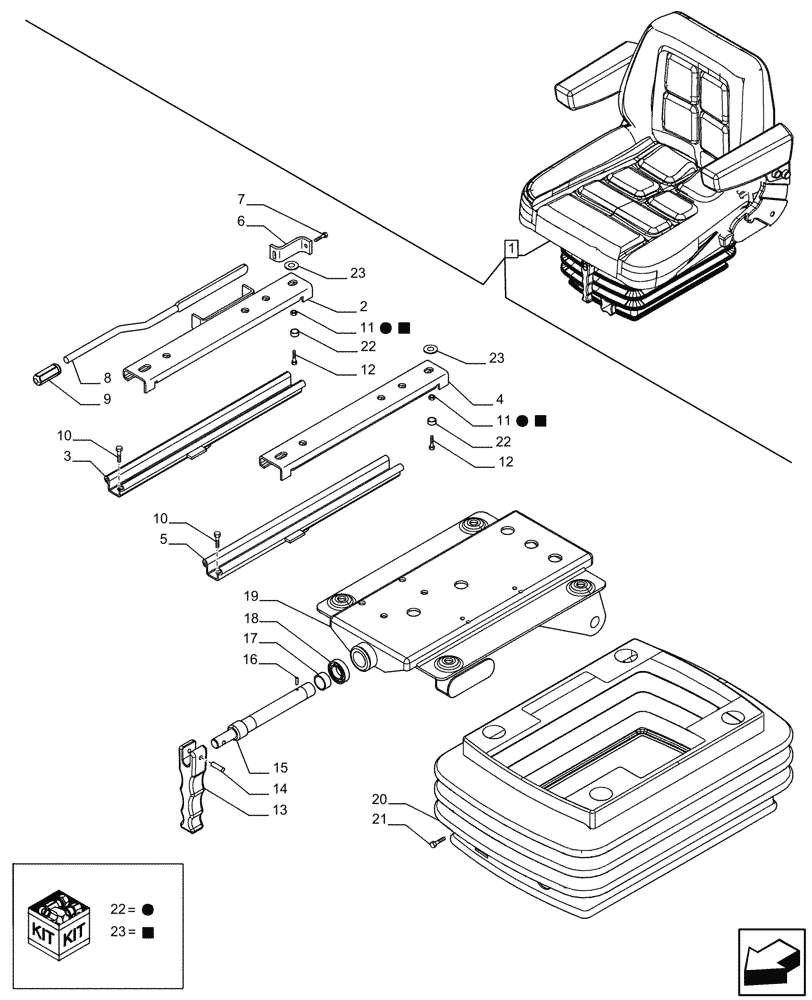

Схема запчастей Case IH JX95HC PLUS - (90.120.130) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
22
19
12
23
15
2
5
22
23
9
4
11
7
8
12
13
17
18
21
23
16
20
3
6
22
11
10
14
22
23
1
23
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091998

DRIVER SEAT

Fabric, Deluxe, w/ Retractable Seat Belt, ASSY, Incl 2 - 23

1шт.

See Deluxe Driver Seat Components also in Figures 90.120.120, 90.120.140

1шт.

2

5080239

SLIDE

RH

1шт.

3

5080238

SLIDE

RH

1шт.

4

5080245

SLIDE

LH

1шт.

5

5080244

SLIDE

LH

1шт.

6

5080243

SPRING

1шт.

7

5080242

BOLT

2шт.

8

5080240

HANDLE

1шт.

9

5080241

KNOB

1шт.

10

5080481

BOLT

4шт.

11

5080237

NUT

4шт.

12

5081314

SCREW

4шт.

13

5080231

HANDLE

1шт.

14

5080233

PIN

1шт.

15

5080230

SCREW

1шт.

16

5080204

PIN

1шт.

17

5081318

SPACER

1шт.

18

5080900

WASHER

1шт.

19

5080220

FRAME

1шт.

20

5080234

BELLOWS

1шт.

21

5094346

RIVET,3.5mm OD x 14mm L

6шт.

22

5083206

KIT

ASSY, Incl 11

1шт.

23

5080362

REPAIR KIT

ASSY, Incl 11

1шт.
