(90.120.140) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS

Запчасти Case IH JX95HC PLUS (90.120.140) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

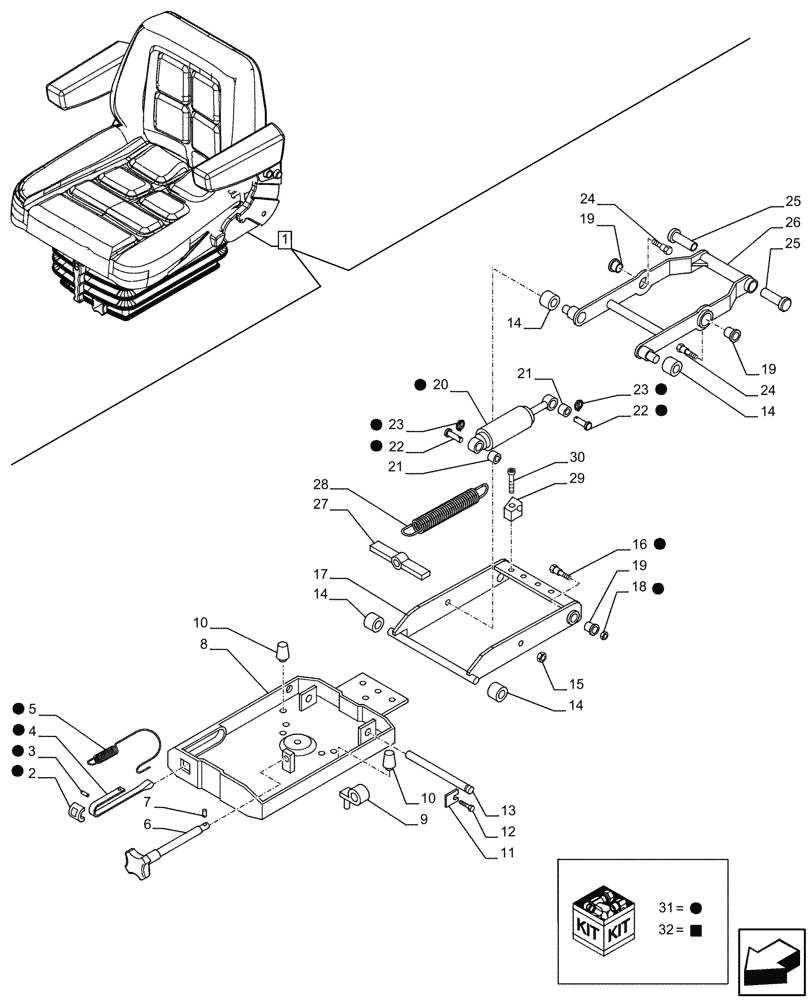

Схема запчастей Case IH JX95HC PLUS - (90.120.140) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
31
4
31
8
23
5
31
32
31
31
29
22
26
23
16
25
14
31
27
31
10
14
24
31
3
31
28
15
13
30
31
19
25
11
21
2
31
14
22
20
19
14
18
17
10
31
19
9
1
7
21
6
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091998

DRIVER SEAT

Fabric, Deluxe, w/ Retractable Seat Belt, ASSY, Incl 2 - 32

1шт.

See Deluxe Driver Seat Components also in Figures 90.120.120, 90.120.130

1шт.

2

5080208

COVER

1шт.

3

5080207

ROLLER

1шт.

4

5080209

TAPE

1шт.

5

5080210

SPRING

1шт.

6

5080897

KNOB

1шт.

7

5080204

PIN

1шт.

8

5080201

BASE

1шт.

9

5080202

ADJUSTER

1шт.

10

5080213

BUMPER

2шт.

11

5080218

PLATE

1шт.

12

5080219

BOLT

1шт.

13

5080205

ROD

1шт.

14

5080214

ROLLER

4шт.

15

5080236

NUT

2шт.

16

5083580

BOLT

2шт.

17

5080223

SUSPENSION

1шт.

18

5080237

NUT

2шт.

19

5080898

PLUG

4шт.

20

5080215

GAS STRUT

1шт.

21

84424312

BUSHING

Shock Absorber

2шт.

22

5080216

PIN

2шт.

23

5080217

RING

2шт.

24

5083579

SCREW

2шт.

25

5080212

BUSHING

2шт.

26

5080222

SUSPENSION

1шт.

27

5080228

TENSIONER

1шт.

28

5080229

SPRING

4шт.

29

5080224

CLIP

4шт.

30

5080899

SCREW

4шт.

31

5083206

KIT

ASSY, Incl 2 - 5, 16, 18, 20, 22, 23

1шт.

32

5080362

REPAIR KIT

ASSY, Incl 18

1шт.
