(90.150.050) - STD + VAR - 391606 - CAB, SUPPORT, FRONT

Запчасти Case IH JX95HC PLUS (90.150.050) - STD + VAR - 391606 - CAB, SUPPORT, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

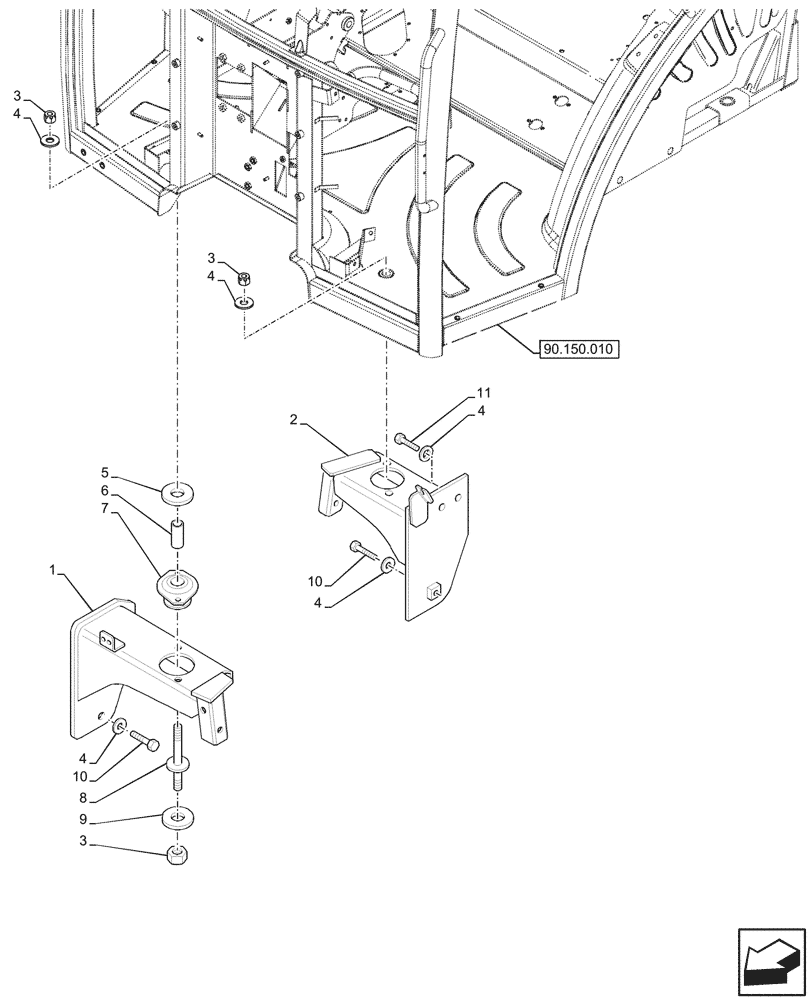

Схема запчастей Case IH JX95HC PLUS - (90.150.050) - STD + VAR - 391606 - CAB, SUPPORT, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
5
4
6
3
10
4
9
4
11
90.150.010
3
4
7
3
8
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84144647

SUPPORT

RH

1шт.

2

87391993

SUPPORT

LH

1шт.

3

12574911

NUT,M16 x 1.5, Cl 8

4шт.

4

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

6шт.

5

5092191

SPACER,17mm ID x 90mm OD x 4mm L

2шт.

6

5132014

SPACER,17mm ID x 24mm OD x 57mm L

2шт.

7

5132016

ISOLATOR

2шт.

8

5089999

STUD

2шт.

9

5092190

SPACER,17mm ID x 90mm OD x 8mm L

2шт.

10

11391521

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

11

16249821

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.
