(90.160.020) - STD + VAR - 391606 - INSTRUMENT PANEL, FRONT, CAB

Запчасти Case IH JX95HC PLUS (90.160.020) - STD + VAR - 391606 - INSTRUMENT PANEL, FRONT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

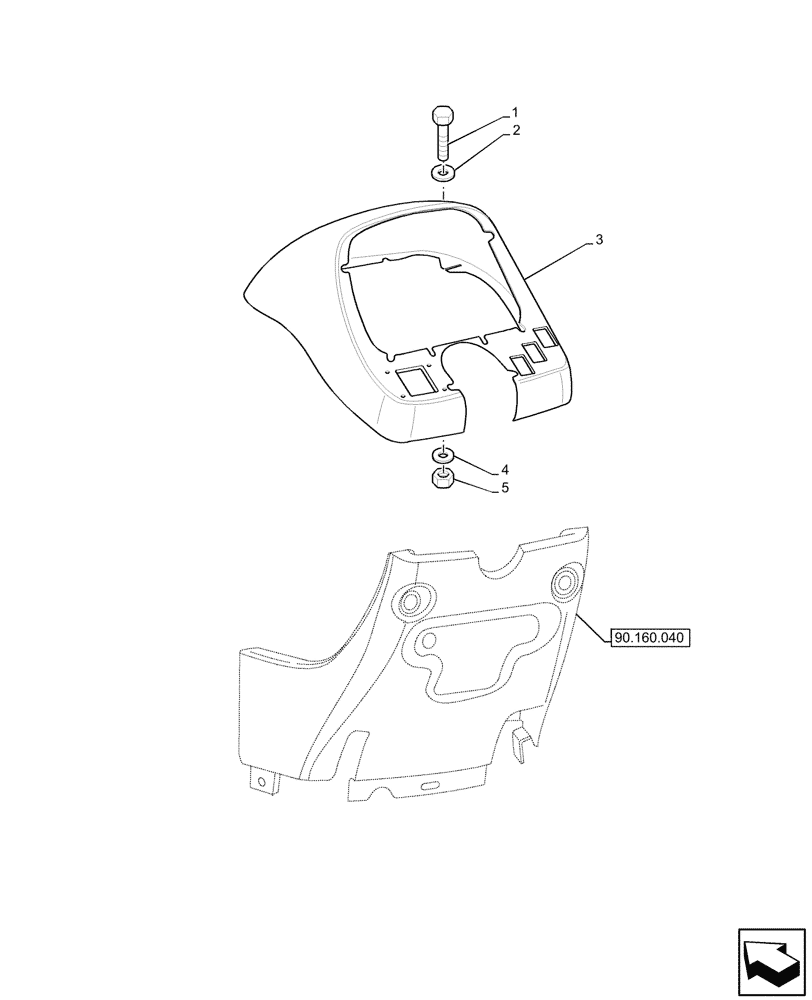

Схема запчастей Case IH JX95HC PLUS - (90.160.020) - STD + VAR - 391606 - INSTRUMENT PANEL, FRONT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
90.160.040
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

6шт.

2

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

12шт.

3

84389925

CONSOLE

Black

1шт.

4

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6шт.

5

15896211

NUT,M6, Cl 8

6шт.
